Crane Man Baskets
The crane man basket, a crane supported man basket, also referred to as a suspended personnel platform, crane cage and construction basket, is designed, manufactured and tested to meet all Federal and OSHA regulations related to overhead lifting.
Please view OSHA 29CFR for rules, regulations and testing requirements on crane lifting baskets.
This heavy-duty crane supported basket is designed to meet the personnel lifting demands of the construction, industrial and mining industry.

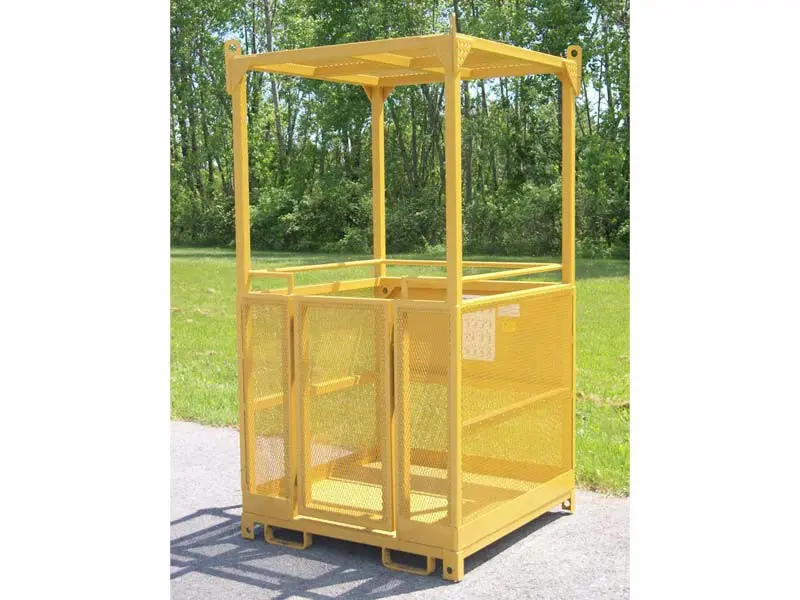

Each crane man basket includes standard features such as 42″ high mesh on sides, self-closing swing-in front door with latch, re-enforced mesh roof, and 4 hook points on top to attach to overhead lifting device. Full perimeter safety harness hook-up allows personnel to be attached almost anywhere inside the basket. Standard fork pockets allows crane basket to be moved with a forklift. We have you covered in making your man lift basket safe and functional.
Current Crane Man Basket Prices
The crane supported man basket must be tested each and every time it is used. Test weight must be rated for 1.25 times the capacity of the basket. Our test weight comes with necessary cabling to secure weight to basket.
- For crane use
- Fork Pockets included for transport
- Self closing swing 21″ wide door
- Hook points for crane and test weight
- Reinforced steel mesh roof
- Tested and certified
5-PT BRIDLE
Our 5PT Bridle includes: (4) Legs 10′ Long x 1/2″ Thick and a 5th Choker line 8′ Long x 5/8″ Thick. All of our baskets are designed with a lift angle of 60° or greater and our sling capacity is rated at 8.7 tons. Please click here for Bridle Capacity table.
Special size crane baskets are available upon request.
Now in! Our crane man basket Round Series features round variations of Koke’s trusted crane man basket. Our round personnel crane basket is best used inside shafts, cylinders, heating & ventilation, and silos. Our team is prepared to quote our round series of crane man baskets. Give us a call for more information.

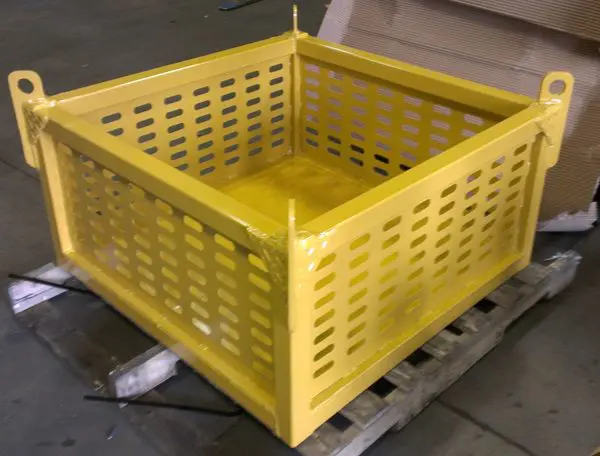

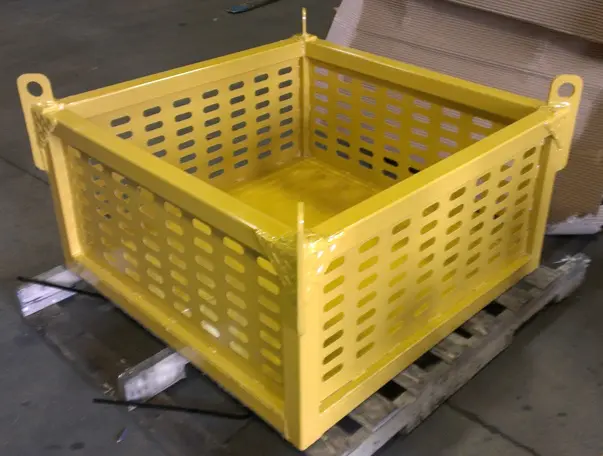

Wondering what exactly you need for a crane man basket set up? Click here for the basic components of a Crane Basket Set Up or call us at 800.535.5303. Our experts will be happy to talk through your needs to make sure you get the right sized basket and options for your crane lift application. We manufacture crane material lifting baskets as well so you only need one supplier to order the equipment to move anything around your site.
Check out some examples of our custom order crane baskets. We also carry a number of other material and personnel moving equipment that can be lifted by cranes, including a crane hopper bucket, heavy duty rescue basket, and material lifting basket.
Our crane baskets meet all OSHA requirements when used with a full safety harness and lanyard.
Product Downloadables
To Order Your Crane Man Baskets or to Learn More, Call 800.535.5303
Freight Class: 200
| Model | Price | Buy Now | Technical Drawing | Picture | Size (W x L x H) | Design | Shipping Dimensions (W x L X H) | Max Occupancy | Capacity (lbs.) | Weight (lbs.) | Video |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MBC-18R | $5,176.00 | Buy Now |  |  | 22"Dia. x 88" | ROUND | 40" x 48" x 94" | 1 | 300 | 195 | |
| MBC-24R | $5,176.00 | Buy Now | | | 28"Dia. x 87" | ROUND | 40" x 48" x 94" | 1 | 300 | 230 | |
| MBC-30R | $5,510.00 | Buy Now | | | 34"Dia. x 88" | ROUND | 40" x 48" x 94" | 1 | 600 | 305 | |
| MBC-36R | $5,510.00 | Buy Now | 39"Dia. x 88" | ROUND | 40" x 48" x 94" | 1 | 600 | 370 | |||
| MBC-3636 | $5,960.00 | Buy Now | |  | 36" x 36" x 88" | SQUARE | 36" x 36" x 88" | 1 | 1,000 | 470 | |
| MBC-4848 | $6,517.00 | Buy Now | |  | 48" x 48" x 88" | SQUARE | 48" x 48" x 88" | 4 | 1,000 | 600 | |

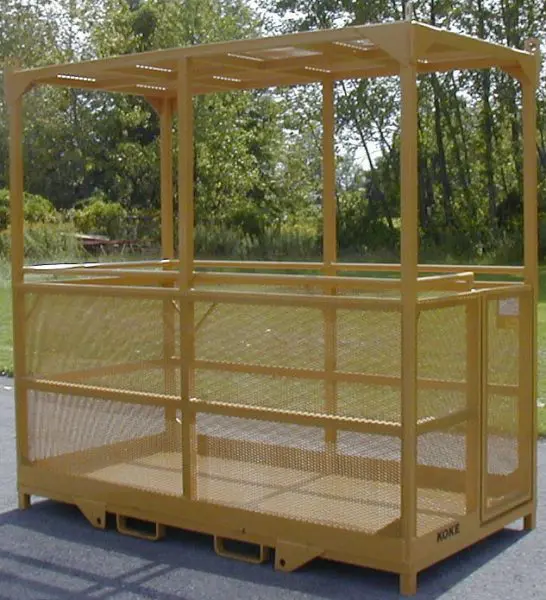

| MBC-7248 | $7,792.00 | Buy Now | |  | 72" x 48" x 88" | RECTANGULAR | 72" x 48" x 88" | 6 | 1,500 | 875 | |
| MBC-9648 | $9,016.00 | Buy Now | |  | 96" x 48" x 88" | RECTANGULAR | 96" x 48" x 88" | 8 | 1,500 | 1,075 |
Product Options
| Option | Price | Buy Now | Description | Picture | Weight (lbs.) | Shipping Dimensions (W x L X H) |
|---|---|---|---|---|---|---|
| MB-O-HR | $296.00 | Buy Now | Full Safety Harness w/ Lanyard |  | ||

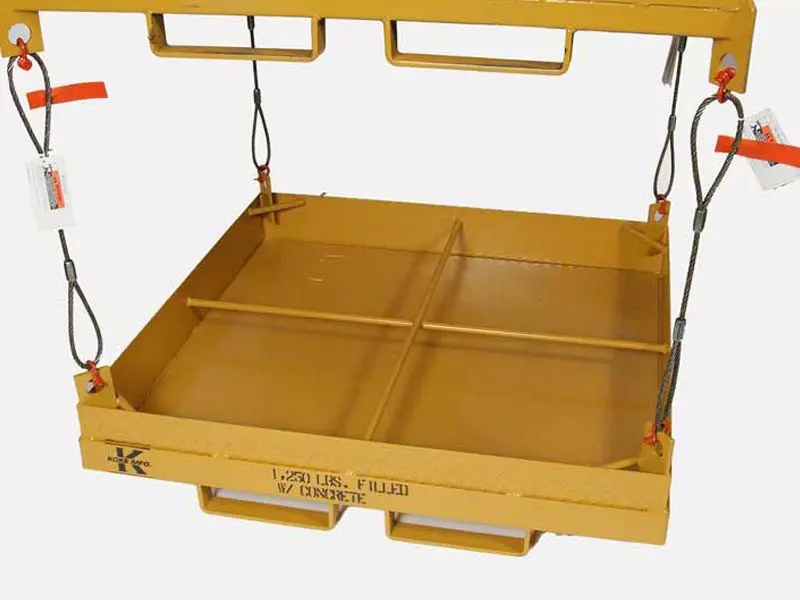

| MB-O-T1250 | $2,054.00 | Buy Now | 1,250 lbs. Test Weight For MBC-3636 and MBC-4848 (NOTE: Needs To Be Filled With Concrete Before First Use) | | 185 | 50" X 50" X 18.5" |
| MB-O-T1875 | $2,221.00 | Buy Now | 1,875 lbs. Test Weight For MBC-9648 and MBC-7248 (NOTE: Needs To Be Filled With Concrete Before First Use) | | 210 | 50" X 50" X 22" |
| MB-O-T375 | $1,781.00 | Buy Now | 375 lbs. Test Weight For MBC-18R, MBC-24R (NOTE: Needs To Be Filled With Concrete Before First Use) |  | 145 | 27"Dia. X 6.5" |
| MB-O-T750 | $1,781.00 | Buy Now | 750 lbs. Test Weight For MBC-30R, MBC-36R (NOTE: Needs To Be Filled With Concrete Before First Use) |  | 165 | 27"Dia. X 15" |
| MB-O-LP | $579.00 | Buy Now | Larger Fork Pockets - Specify Size Of Forks | |||
| MB-O-GR | $1,236.00 | Buy Now | 1" x 1.025" Steel Grate Flooring | 240 | ||
| MB-O-BR104 | $1,636.00 | Buy Now | 4-Pt Bridle, 10'L With Additional 8' Choker Line |  | 55 | |
| MB-O-BR103 | $1,636.00 | Buy Now | 3-Pt Bridle, 10'L With Additional 8' Choker Line (for MBC-18R,-24R,-30R,-36R) | 50 | ||
| MB-O-C6S | $409.00 | Buy Now | 6" Steel Casters |  | 40 |
What Should I Know Before I Buy a Crane Man Basket?
Important FAQs to help guide the buying process
- There are 3 Components Needed to be Compliant.
When lifting personnel overhead, you will need a crane basket, test weight and bridle. These excerpts are what you need to know regarding each product’s OSHA and ANSI requirements.- Basket:
B56.1-2020-7.37.1 – Platforms used for elevating personnel shall have: (a) a slip resistant floor surface. (b) a minimum floor space of 450 mm x 450 mm (18 in x 18 in) for each platform occupant. (c) protection for personnel in their normal working position on the platform from moving parts of the truck that represent a hazard. (d) fall restraint means such as a guard rail or a personal fall protection system, whenever the platform can be elevated to a height greater than 1200mm (47.25”). - Test Weight:
1926.1431(j)(1) – At each jobsite, prior to hoisting employees on the personnel platform, and after any repair or modification, the platform and rigging must be proof tested to 125% of the basket’s rated capacity. The proof test may be done concurrently with the trial lift.
1926.1431(j)(2) – states platform must be lowered by controlled load lowering, braked, and held in a suspended position for 5 minutes with the test load evenly distributed on the platform.
1926.1431(j)(3) – After proof testing, a competent person must inspect the platform and rigging. - Bridle:
1926.1431(g)(3) – Rigging hardware (including wire rope, shackles, rings, master links, and other rigging hardware) and hooks must be capable of supporting, without failure, at least five times the maximum intended load applied or transmitted to that component. We offer a 5PT bridle with the 5th choker line attaching above the crane ball. Some Federal Projects require this 5th line and that is why we only offer 5pt for square and rectangular baskets and 4PT bridles for our round series baskets.
- Basket:
- How Often Do I Need to Test My Basket?
- 1926.1431(h)(1) A trial lift with the unoccupied personnel platform loaded at least to the anticipated lift weight must be made from the ground level, or any other location at which the platform is to be hoisted and positioned. Where there is more than one location to be reached from a single trial lift, in which the platform is moved sequentially to each location, must be performed; the method selected must be the same as the method that will be used to hoist the personnel.
- 1926.1431(h)(2) The trial lift must be performed immediately prior to each shift in which personnel will be hoisted. In addition, the trial lift must be repeated prior to hoisting employees in each of the following circumstances:
- 1926.1431(h)(2)(i) – The equipment is moved and set up in a new location or returned to a previously used location.
- 1926.1431(h)(2)(ii) – The lift route is changed, unless the competent person determines that the new route presents no new factors affecting safety.
- Do Koke Crane Man Baskets Products Meet These Requirements?
Yes. All Koke products meet or exceed OSHA , ANSI or MSHA pertaining to overhead lifting of personnel. We test every basket we manufacture at a minimum of 2.5 times it rated capacity. In addition, we include a test certificate stating the stringent testing we do so you have it in writing. You can be assured our baskets are built to the highest standards. - Will the Product I See be the Same Product I Get?
Yes. All our products are manufactured here in New York by highly skilled welders using state of the art machinery to assure product consistency. Each basket we manufacture originates from a CAD drawing to assure it meets all design, fabrication and compliance requirements. - What About a Warranty?
We offer the industry leading 2 Year Workmanship Warranty. Should you experience a product failure due to workmanship, Koke Inc will either repair or replace the item at our expense! No one builds a basket like Koke and we back up what we say. - Where are Koke Products Manufactured?
All our products are built right here in Queensbury, NY. Our highly skilled production staff works hand in hand with our Engineers and Sales Department to develop, design, manufacture and proudly offer the industry’s most complete line of overhead lifting baskets for both personnel and product.
