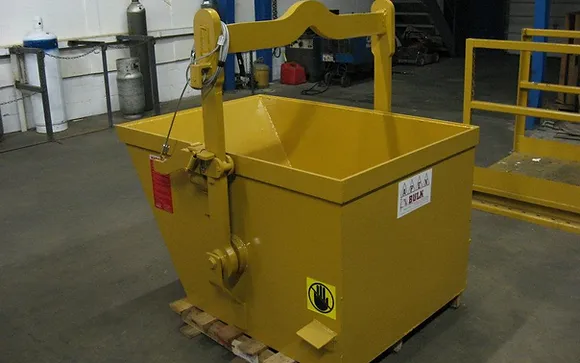

Crane Hoppers
Koke Dumping Crane Hopper Buckets can safely handle loads up to 8,000 lbs. Heavy Duty Steel Construction makes these crane hoppers/debris baskets durable and long lasting. All the impact areas are reinforced to take the beating these will endure. The bucket design dumps easily with the pull of the lever. The weight inside the bucket rolls the bucket forward for ease of dumping. Smooth interior wall means debris falls out and is easy to clean. Once unloaded, the bucket will return to its level position and be ready to use again. Spring loaded handle locks bucket for use. For elevated dumping, order with the optional 12′ lanyard.
Applications such as construction debris, scrap steel, foundries, machine shops, sludge and waste water treatment make this a must have item on any job site.
Crane Bucket Hopper Features:
- Plasma Cut Lifting Beam
- A36 Plate Body
- Reinforced Critical & Impact Areas
- Hand and Lever Latch to Lock or Dump
- Painted Yellow for Visibility
- All Welded Construction
Make sure you have the right tools for the job and follow proper safety techniques for operating a self dumping hopper. We also carry a number of other material and personnel moving equipment that can be lifted by cranes, including a man basket, heavy duty rescue basket, and material lifting basket.
For Questions About Our Dumping Crane Hoppers or to Order, Call 800.535.5303
Freight Class: 100
| Model | Price | Technical Drawing | Picture | Bucket Dimensions (W x L x H) | Overall Dimensions (W x L x H) | Volume (Cu. Yds.) | Weight (lbs.) | Capacity (lbs.) | Video | |
|---|---|---|---|---|---|---|---|---|---|---|
| MBH-75 | $3,434.00 |  | | 30" x 51" x 28" | 39-3/8" x 51" x 46" | 0.75 | 700 | 8,000 lbs @ 27"LC | ||
| MBH-100 | $3,657.00 | | | 36" x 53" x 30" | 45-3/8" x 53" x 51" | 1 | 780 | 8,000 lbs @ 33"LC | ||
| MBH-150 | $4,385.00 | | | 45-3/8" x 61-5/8" x 33-1/8" | 54-3/4" x 61-5/8" x 55-1/4" | 1.5 | 1,000 | 8,000 lbs @ 38"LC | ||
| MBH-200 | $5,115.00 | | | 48" x 66" x 36" | 57-1/8" x 66" x 60" | 2 | 1,260 | 8,000 lbs @ 38"LC |
Product Options
| Option | Price | Description | Picture | |
|---|---|---|---|---|
| MB-O-FP | $501.00 | 3x8 Fork Pockets | ||
| MB-O-LY | $206.00 | 12' L Release Lanyard |
