Forklift Drum Grabber/Lifters
Our forklift drum grabbers are the safest and most durable lift truck attachments anywhere. Precision laser cut components are machined and hardened. There are no stamped parts on any of our drum handlers.
Every drum lifter/handler/grabber we offer features steel alloy jaws on our beaks. We can configure a drum handler with one or two beak heads, and our heavy-duty handler features a double clamping mechanism.
If you have a fiber, steel or plastic chimed drum, our forklift drum grabber is what you need. We offer light, medium and heavy duty models with capacities that range from 750 lbs. to 4,000 lbs. capacity.
Each lifter is available in either a fork mount or carriage mount. Standard safety chain secures attachments to lift. Beak on the grabber is adjustable in height to suit your specific application.
Light Duty Drum Grabber Series Features:
- 750 lb. capacity per drum
- Automatic single or double clamping mechanism
- Will handle any size steel or plastic chimed drum
- Fork pockets can handle up to a 2″ x 6″ fork
Medium Duty Series Features:
- 1,500 lb. capacity per drum
- Automatic single clamping mechanism
- Will handle any size steel or plastic chimed drum
- Fork pockets can handle up to a 2″ x 6″ fork
Heavy Duty Series Features:
- 2,000 lb. capacity per drum
- Automatic double clamping mechanism
- Will handle any size steel or plastic chimed drum
- Fork pockets can handle up to a 2″ x 6″ fork
Product Downloadables
For Questions About Our Forklift Drum Grabbers or to Order, Call 800.535.5303
Light Duty Series of Drum Handlers
Freight Class: 70
| Model | Price | Technical Drawing | Picture | Description | Mount | Capacity (lbs.) | Weight (lbs.) | Video |
|---|---|---|---|---|---|---|---|---|
| EG1SCM-CM | $1,014.00 | | 1 Drum, Single Clamp | CL2 | 750 lbs@24"LC | 54 | ||

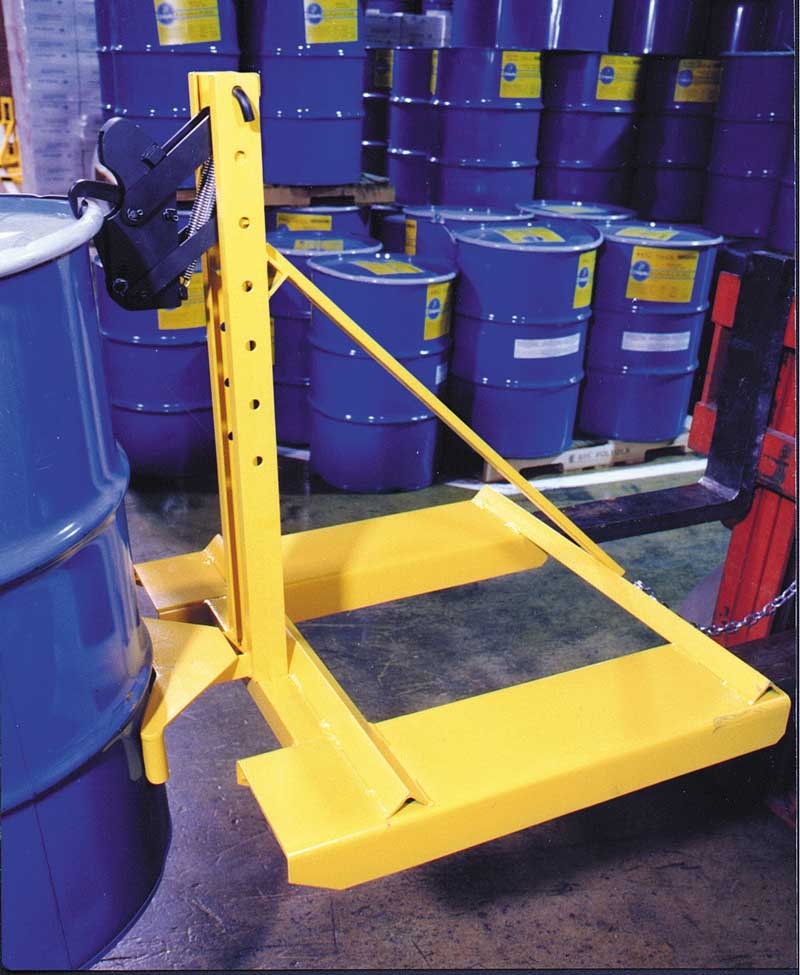

| EG1SCM-F | $1,164.00 | | 1 Drum, Single Clamp | Fork | 750 lbs@24"LC | 128 | ||
| EG1SCM2-F | $1,865.00 | 1 Or 2 Drum, Single Clamp | Fork | 1,500 lbs@24"LC | 180 | |||
| EG2LDCM-CM | $1,592.00 | | 1 Drum, Double Clamp | CL2 | 1,000 lbs@24"LC | 71 | ||
| EG2LDCM-F | $1,742.00 | | 1 Drum, Double Clamp | Fork | 1,000 lbs@24"LC | 145 | ||
| EG2LDCM2-F | $3,335.00 | | 1 Or 2 Drum, Double Clamp | Fork | 2,000 lbs@24"LC | 205 |
Medium Duty Series of Drum Handlers
Freight Class: 70
| Model | Price | Technical Drawing | Picture | Description | Mount | Capacity (lbs.) | Weight (lbs.) | Video |
|---|---|---|---|---|---|---|---|---|
| EG3SCM-CM | $1,687.00 | | Fixed, 1 Drum, Single Clamp | CL2 | 1,500 lbs@24"LC | 90 | ||
| EG3SCM-NF | $2,900.00 | | Fixed, 1 Drum, Single Clamp | Fork | 1,500 lbs@24"LC | 235 | ||
| EG3SCM-F | $3,335.00 | Adj. 1 Drum, Single Clamp | Fork | 1,500 lbs@24"LC | 311 | |||
| EG3SCM2-F | $4,892.00 | Adj. 1 Or 2 Drum, Single Clamp | Fork | 3,000 lbs@24"LC | 390 |
Heavy Duty Series of Drum Handlers
Freight Class: 70
| Model | Price | Technical Drawing | Picture | Description | Mount | Capacity (lbs.) | Weight (lbs.) | Video |
|---|---|---|---|---|---|---|---|---|
| EG4DCM-CM | $2,438.00 | | Fixed, 1 Drum, Double Clamp | CL2 | 2,000 lbs@24"LC | 115 | ||
| EG4DCM-NF | $3,770.00 | | Fixed, 1 Drum, Double Clamp | Fork | 2,000 lbs@24"LC | 260 | ||
| EG4DCM-F | $3,349.00 | Adj. 1 Drum, Double Clamp | Fork | 2,000 lbs@24"LC | 335 | |||
| EG4DCM2-F | $6,396.00 | | Adj. 1 Or 2 Drum, Double Clamp | Fork | 4,000 lbs@24"LC | 440 | ||
| EL4F | $6,300.00 |  | 4 Drum Clamp - Std Beak | Fork | 6,000 lbs@24"LC | 252 | ||
| EL4FQC | $8,07000 |  | 4 Drum Clamp - Quick Clamp | Fork | 6,000 lbs@24"LC | 293 |
