The forklift fork extension allows handling of large and odd shaped loads with better stability and reduced product damage.
Simply slide forklift extension over fork and fork extension will lie on top of your fork and lock under fork hanger.
Each forklift fork extension is constructed from structural channel, and features plasma cut taper on the front tip and has 1/2″x1″ flat hanger.
Welded loop on end of extension keeps it in place and makes it convenient to take on and off. The standard welded loop position is set to handle up to 2″ thick forks. Thicker forks can be accommodated upon request.
OSHA requires that forklift fork extensions cannot exceed 1.5 times the length of the fork. Forklift extensions are designed for hook type forks only. Click for data information on extensions. To read more about proper extension use, please see section 7.39 of the ANSI B56.1 ruling on fork extensions.
For shaft mount fork extensions, please call (800) 535-5303 for information.
Fork Extensions should not exceed 1.5 times the length of the fork. Extensions for shaft mounted forks are available upon request. Extensions available in 48″, 54″, 60″, 63″, 72″, 84″, 90″ & 96″ lengths.
For Questions About Our Forklift Extensions or to Order, Call 800.535.5303
| MODEL | SIZE W X L INCHES |
FITS FORK WIDTH |
MINIMUM FORK LENGTH |
LLC INCHES |
HCG INCHES |
VCG INCHES |
WEIGHT LBS/PR |
CAPACITY @LC |
PRICE/PAIR |
|---|---|---|---|---|---|---|---|---|---|
| FOR 4″ WIDE ITA HOOK FORKS | |||||||||
| 448-ST | 5X48 | 4″ | 32″ | EFT | 22.22 | .88 | 60 | [email protected]″LC | $325.00 |
| 454-ST | 5X54 | 4″ | 36″ | EFT | 25.33 | .88 | 62 | [email protected]″LC | $340.00 |
| 460-ST | 5X60 | 4″ | 40″ | EFT | 28.22 | .88 | 72 | [email protected]″LC | $370.00 |
| 463-ST | 5X63 | 4″ | 42″ | EFT | 31.35 | .88 | 76 | [email protected]″LC | $380.00 |
| 472-ST | 5X72 | 4″ | 48″ | EFT | 34.08 | .88 | 84 | [email protected]″LC | $397.50 |
| 484-ST | 5X84 | 4″ | 56″ | EFT | 40.11 | .88 | 100 | [email protected]″LC | $415.00 |
| 490-ST | 5X90 | 4″ | 60″ | EFT | 43.09 | .88 | 104 | [email protected]″LC | $425.00 |
| 496-ST | 5X96 | 4″ | 64″ | EFT | 46.09 | .88 | 106 | [email protected]″LC | $457.50 |
| FOR 5″ WIDE ITA HOOK FORKS | |||||||||
| 548-ST | 6X48 | 5″ | 32″ | EFT | 22.47 | .96 | 70 | [email protected]″LC | $352.50 |
| 554-ST | 6X54 | 5″ | 36″ | EFT | 25.47 | .96 | 80 | [email protected]″LC | $370.00 |
| 560-ST | 6X60 | 5″ | 40″ | EFT | 28.44 | .96 | 82 | [email protected]″LC | $382.50 |
| 563-ST | 6X63 | 5″ | 42″ | EFT | 31.44 | .96 | 90 | [email protected]″LC | $425.00 |
| 572-ST | 6X72 | 5″ | 48″ | EFT | 34.35 | .96 | 100 | [email protected]″LC | $440.00 |
| 584-ST | 6X84 | 5″ | 56″ | EFT | 40.34 | .96 | 116 | [email protected]″LC | $457.50 |
| 590-ST | 6X90 | 5″ | 60″ | EFT | 43.34 | .96 | 124 | [email protected]″LC | $470.00 |
| 596-ST | 6X96 | 5″ | 64″ | EFT | 46.26 | .96 | 132 | [email protected]″LC | $485.00 |
| FOR 6″ WIDE ITA HOOK FORKS | |||||||||
| 648-ST | 7X48 | 6″ | 32″ | EFT | 22.59 | 1.05 | 70 | [email protected]″LC | $425.00 |
| 654-ST | 7X54 | 6″ | 36″ | EFT | 25.57 | 1.05 | 90 | [email protected]″LC | $457.50 |
| 660-ST | 7X60 | 6″ | 40″ | EFT | 28.55 | 1.05 | 100 | [email protected]″LC | $485.00 |
| 663-ST | 7X63 | 6″ | 42″ | EFT | 31.55 | 1.05 | 110 | [email protected]″LC | $512.50 |
| 672-ST | 7X72 | 6″ | 48″ | EFT | 34.53 | 1.05 | 120 | [email protected]″LC | $532.50 |
| 684-ST | 7X84 | 6″ | 56″ | EFT | 40.51 | 1.05 | 138 | [email protected]″LC | $570.00 |
| 690-ST | 7X90 | 6″ | 60″ | EFT | 45.01 | 1.05 | 148 | [email protected]″LC | $600.00 |
| 696-ST | 7X96 | 6″ | 64″ | EFT | 49.49 | 1.05 | 160 | [email protected]″LC | $680.00 |
| FOR 7″ WIDE ITA HOOK FORKS | |||||||||
| 760-ST | 9X60 | 7″ | 40″ | EFT | 28.54 | 1.22 | 130 | [email protected]″LC | $637.50 |
| 772-ST | 9X72 | 7″ | 48″ | EFT | 34.44 | 1.22 | 150 | [email protected]″LC | $700.00 |
| 784-ST | 9X84 | 7″ | 56″ | EFT | 40.53 | 1.22 | 190 | [email protected]″LC | $890.00 |
| 796-ST | 9X96 | 7″ | 64″ | EFT | 46.61 | 1.22 | 230 | [email protected]″LC | $902.50 |
EFT=Effective Fork Thickness HCG=Horizontal Center of Gravity VCG=Vertical Center of Gravity
| OPTION | DESCRIPTION | PRICE |
|---|---|---|

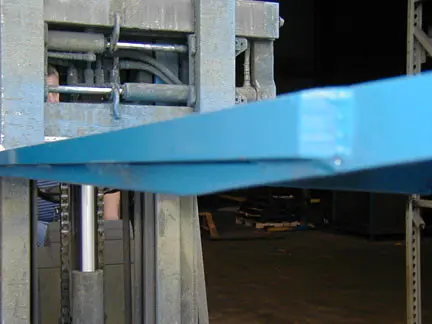

| EXT-OPT 01 | REINFORCED EXTENSIONS / PAIR-INCREASES CAPACITY TO 3,000LBS. | $300.00 |
| EXT-OPT 02 | PIN LOCK IN PLACE OF LOOPS | $160.00 |
| EXT-OPT 04 | HEEL STRAP SET FOR LARGER THAN 2” THICK FORK | $80.00 |
