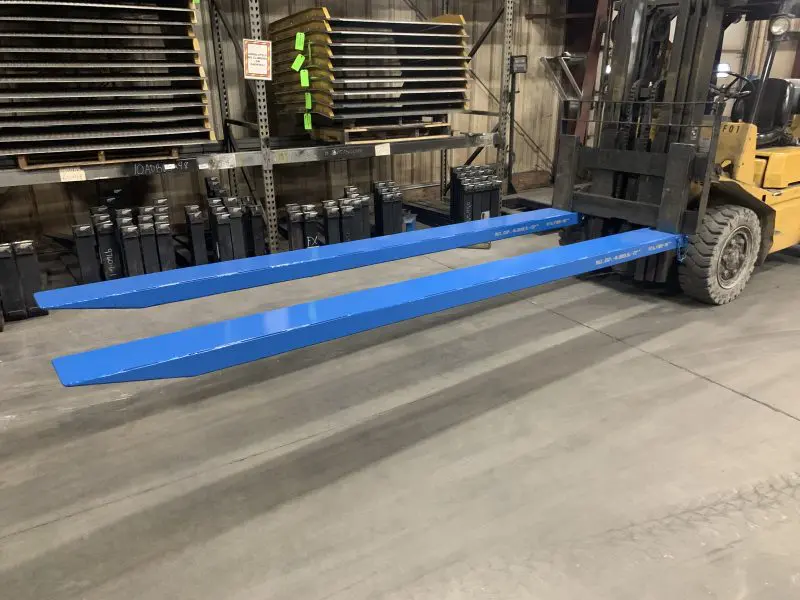

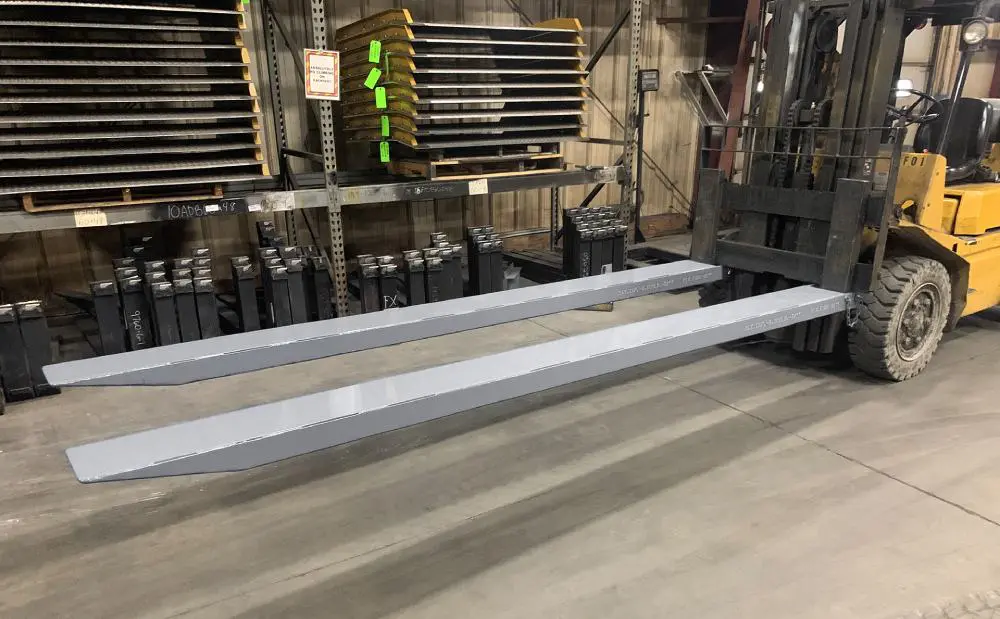

Super Duty Forklift Extensions
Super Duty forklift extensions are manufactured to provide high capacity extensions for those extreme needs. These forklift forklift extensions enclose all 4 sides of the forklift fork to offer a tighter fit. The fork has minimal movement within the boxed extension and provides a more stable loading surface for high capacity applications.
Super Duty forklift extensions (SD) are available in capacities from 6,000 lbs. to 12,000 lbs. Top and bottom plates are hot rolled steel plate and the sides are constructed from hot rolled bar stock. All orders are designed to fit your forks, and typical turnaround time is 4 weeks.

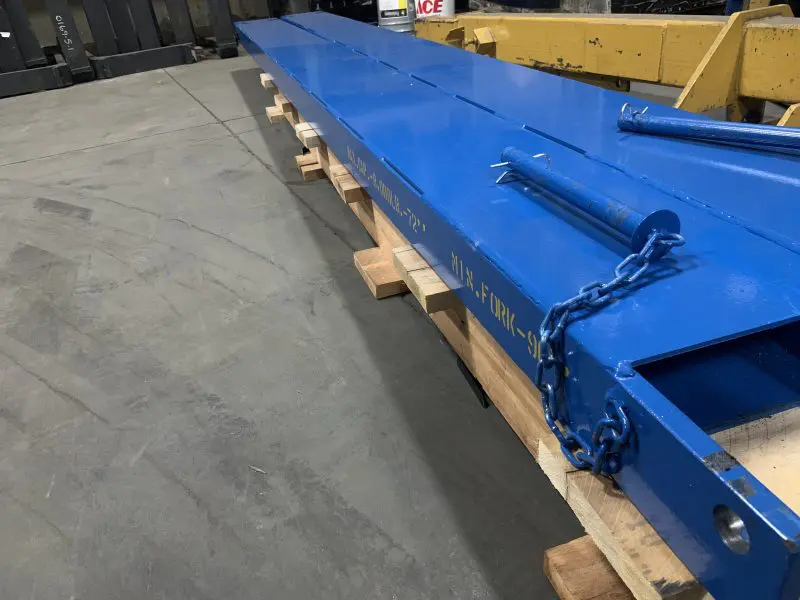

Simply slide your fork into the forklift extension, and secure it by placing the locking pin through the brackets on the back.
5/8″ thick pin on end of forklift extension keeps it in place and makes it convenient to take on and off. Other sizes are available upon request.
OSHA requires that forklift fork extensions cannot exceed 1.5 times the length of the fork. Our Super Duty forklift fork extensions are designed for hook or shaft type forks. To read more about proper extension use, please see section 7.39 of the ANSI B56.1 ruling on fork extensions.
Super Duty extensions are available up to 156″ long (13 feet).
Product Downloadables
For More Details On Our Forklift Extensions Call 800.535.5303
6,000 LBS. CAPACITY EXTENSIONS
8,000 LBS. CAPACITY EXTENSIONS
10,000 LBS. CAPACITY EXTENSIONS
12,000 LBS. CAPACITY EXTENSIONS
| Model | Price/Pair | Buy Now | Technical Drawing | Picture | Forklift Extension Dimension O.D. | Fits Fork Size Up To T x W | Capacity | LLC (inches) | HCG (inches) | VCG (inches) | Weight (lbs./pr) | Video |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 672-SD6 | $2,210.00 | Buy Now |  |  | 3" x 7.5" x 72" | 2.25" x 6" | 6,000@36"LC | EFT | 33.65 | 1.51 | 260 | |
| 684-SD6 | $2,322.00 | Buy Now | | | 3" x 7.5" x 84" | 2.25" x 6" | 6,000@42"LC | EFT | 39.65 | 1.5 | 300 | |
| 696-SD6 | $2,444.00 | Buy Now | | | 3" x 7.5" x 96" | 2.25" x 6" | 6,000@48"LC | EFT | 45.65 | 1.49 | 336 | |
| 6120-SD6 | $2,676.00 | Buy Now | | | 3" x 7.5" x 120" | 2.25" x 6" | 6,000@60"LC | EFT | 57.5 | 1.75 | 416 | |
| 6144-SD6 | $2,916.00 | Buy Now | | | 3" x 7.5" x 144" | 2.25" x 6" | 6,000@72"LC | EFT | 69.5 | 1.75 | 520 | |
| 672-SD8 | $2,332.00 | Buy Now | | | 3.5" x 7.75" x 72" | 2.5" x 6" | 8,000@36"LC | EFT | 33.44 | 1.81 | 310 | |
| 684-SD8 | $2,464.00 | Buy Now | | | 3.5" x 7.75" x 84" | 2.5" x 6" | 8,000@42"LC | EFT | 39.44 | 1.8 | 358 | |
| 696-SD8 | $2,586.00 | Buy Now | | | 3.5" x 7.75" x 96" | 2.5" x 6" | 8,000@48"LC | EFT | 45.44 | 1.79 | 420 | |
| 6120-SD8 | $2,888.00 | Buy Now | | | 3.5" x 7.75" x 120" | 2.5" x 6" | 8,000@60"LC | EFT | 57.44 | 1.78 | 510 | |
| 6144-SD8 | $3,192.00 | Buy Now | | | 3.5" x 7.75" x 144" | 2.5" x 6" | 8,000@72"LC | EFT | 69.45 | 1.8 | 620 | |
| 672-SD10 | $2,666.00 | Buy Now | | | 3.75" x 8" x 72" | 2.5" x 6" | 10,000@36"LC | EFT | 33.85 | 1.93 | 430 | |
| 684-SD10 | $2,860.00 | Buy Now | | | 3.75" x 8" x 84" | 2.5" x 6" | 10,000@36"LC | EFT | 39.85 | 1.92 | 500 | |
| 696-SD10 | $3,028.00 | Buy Now | | | 3.75" x 8" x 96" | 2.5" x 6" | 10,000@36"LC | EFT | 45.85 | 1.92 | 560 | |
| 6120-SD10 | $3,604.00 | Buy Now | | | 3.75" x 8" x 120" | 2.5" x 6" | 10,000@36"LC | EFT | 57.85 | 1.91 | 700 | |
| 6144-SD10 | $3,806.00 | Buy Now | | | 3.75" x 8" x 144" | 2.5" x 6" | 10,000@36"LC | EFT | 69.85 | 1.9 | 840 | |
| 872-SD8 | $2,898.00 | Buy Now | | | 3.5" x 10" x 72" | 2.5" x 8" | 8,000@96"LC | EFT | 33.61 | 1.81 | 344 | |
| 884-SD8 | $3,138.00 | Buy Now | | | 3.5" x 10" x 84" | 2.5" x 8" | 8,000@42"LC | EFT | 39.69 | 1.8 | 412 | |
| 896-SD8 | $2,933.00 | Buy Now | | | 3.5" x 10" x 96" | 2.5" x 8" | 8,000@48"LC | EFT | 45.62 | 1.8 | 456 | |
| 8120-SD8 | $3,211.00 | Buy Now | | | 3.5" x 10" x 120" | 2.5" x 8" | 8,000@60"LC | EFT | 57.62 | 1.79 | 566 | |
| 8144-SD8 | $3,499.00 | Buy Now | | | 3.5" x 10" x 144" | 2.5" x 8" | 8,000@72"LC | EFT | 69.62 | 1.78 | 680 | |
| 8156-SD8 | $3,650.00 | Buy Now | | | 3.5" x 10" x 156" | 2.5" x 8" | 8,000@78"LC | EFT | 75.62 | 1.78 | 734 | |
| 872-SD10 | $3,188.00 | Buy Now | | | 4.25" x 10.25" x 72" | 3" x 8" | 10,000@36"LC | EFT | 33.81 | 2.2 | 514 | |
| 884-SD10 | $3,452.00 | Buy Now | | | 4.25" x 10.25" x 84" | 3" x 8" | 10,000@42"LC | EFT | 39.82 | 2.19 | 600 | |
| 896-SD10 | $4,127.00 | Buy Now | | | 4.25" x 10.25" x 96" | 3" x 8" | 10,000@48"LC | EFT | 45.82 | 2.18 | 682 | |
| 8120-SD10 | $4,275.00 | Buy Now | | | 4.25" x 10.25" x 120" | 3" x 8" | 10,000@60"LC | EFT | 57.83 | 2.17 | 850 | |
| 8144-SD10 | $4,726.00 | Buy Now | | | 4.25" x 10.25" x 144" | 3" x 8" | 10,000@72"LC | EFT | 69.83 | 2.16 | 1016 | |
| 8156-SD10 | $4,981.00 | Buy Now | | | 4.25" x 10.25" x 156" | 3" x 8" | 10,000@78"LC | EFT | 75.83 | 2.16 | 1100 | |
| 872-SD12 | $3,226.00 | Buy Now | | | 4.75" x 10.5" x 72" | 3.5" x 8" | 12,000@36"LC | EFT | 33.24 | 2.45 | 632 | |
| 896-SD12 | $3,794.00 | Buy Now | | | 4.75" x 10.5" x 96" | 3.5" x 8" | 12,000@48"LC | EFT | 45.25 | 2.43 | 836 | |
| 8120-SD12 | $4,362.00 | Buy Now | | | 4.75" x 10.5" x 120" | 3.5" x 8" | 12,000@60"LC | EFT | 57.25 | 2.42 | 1040 | |
| 8144-SD12 | $4,930.00 | Buy Now | | | 4.75" x 10.5" x 144" | 3.5" x 8" | 12,000@72"LC | EFT | 69.25 | 2.41 | 1244 | |
| 8156-SD12 | $5,226.00 | Buy Now | | | 4.75" x 10.5" x 156" | 3.5" x 8" | 12,000@78"LC | EFT | 75.25 | 2.41 | 1350 |
EFT=Effective Fork Thickness LLC=Lost Load Center HCG=Horizontal Center of Gravity VCG=Vertical Center of Gravity
