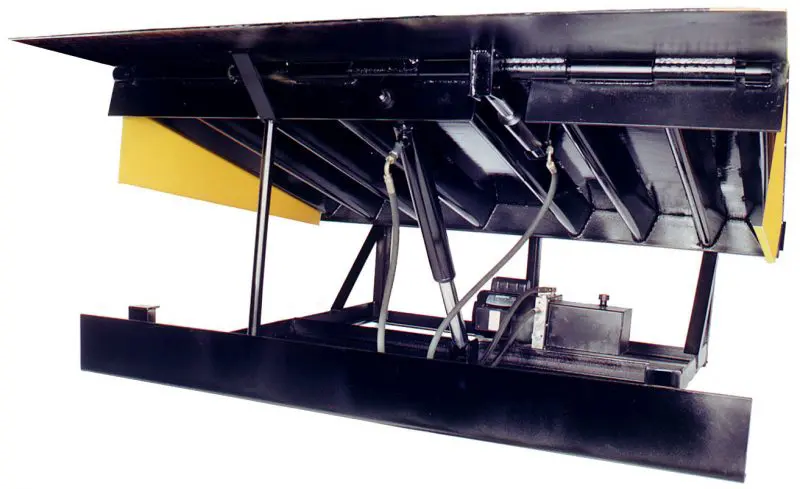

Hydraulic Dock Levelers
When trucks come to your dock to load or upload products, truck and dock need to be absolutely level and you need them to get to that state quickly every single time. Our hydraulic dock levelers fit that bill.
The features of our Hydraulic Dock Levelers include:
- 16″ Hydraulic lip
- Articulating top deck
- Maintenance stand
- Safety tread plate for maximum traction
- Full night lock
- Safety toe guards
- Velocity fuse
- 1 hp motor – 110VAC/1PH
And what they mean to you is that you and delivery/unloading truck drivers can rest assured that your dock and their trucks will get on the level quickly and with a minimum of fuss. In addition, drivers and other dock workers will be safe from injury.
Our levelers come in different sizes varying from 6’ x 6’ to 7’ x 10’. All have a 27,000 pound capacity standard.
*** Consult factory for higher capacities and voltages. Installation is straightforward and instructions are included.
Popular options available on our hydraulic dock leveler are 18″ and 20″ lips, capacities up to 100,000 lbs., traction grip coating and overhead door interlock.
Product Downloadables
Call Us With Any Questions About Or To Order Our New Hydraulic Dock Levelers At 800.535.5303
| Model | Price | Technical Drawing | Picture | Width | Length | Pit Size (L x W x D) | Voltage | Capacity (lbs.) | Weight (lbs.) | Video |
|---|---|---|---|---|---|---|---|---|---|---|
| KHD-6627 | $7,864.00 |  | 6' | 6' | 63"x74"x23" | 110V | 27,000 | 1350 | ||
| KHD-6827 | $8,081.00 | | 6' | 8' | 87"x74"x23" | 110V | 27,000 | 1525 | ||
| KHD-61027 | $8,398.00 | | 6' | 10' | 111"x74"x23" | 110V | 27,000 | 1790 | ||
| KHD-7627 | $8,009.00 | | 7' | 6' | 63"x86"x23" | 110V | 27,000 | 1450 | ||
| KHD-7827 | $8,154.00 | | 7' | 8' | 87"x86"x23" | 110V | 27,000 | 1600 | ||
| KHD-71027 | $8,454.00 | | 7' | 10' | 111"x86"x23" | 110V | 27,000 | 1900 |
Product Options
| Option | Price | Description | Technical Drawing | Picture |
|---|---|---|---|---|
| BUMPKIT | $210.00 | (2) Bumpers w/ Hardware |  | |
| LV-OPT 01 | $557.00 | Auto Return Cross Traffic | ||
| LV-OPT 03 | $530.00 | Telescoping Toe Guards |  | |
| LV-OPT 04 | $557.00 | Pit Size, Non Standard | ||
| LV-OPT 05 | $1,225.00 | Step Pit (Hydraulic Only) | ||
| LV-OPT 06 | $474.00 | 208, 220, Or 480 3 Phase | ||
| LV-OPT 07 | $363.00 | 3 Sides Weather Seal |  | |
| LV-OPT 07N | $552.00 | 3 Sides Brush Seals w/ Neoprene |  | |
| LV-OPT 09 | $1,887.00 | Pour Pan For 6x6 Leveler |  |  |
| LV-OPT 09B | $2,894.00 | Pour Pan w/ Bumpers 6x6 Leveler | |  |
| LV-OPT 10 | $2,299.00 | Pour Pan For 6x8 Leveler | | |
| LV-OPT 10B | $3,006.00 | Pour Pan w/ Bumpers 6x8 Leveler | | |
| LV-OPT 11 | $2,282.00 | Pour Pan For 6x10 Leveler | | |
| LV-OPT 08 | $2,060.00 | Pour Pan For 7x6 Leveler | | |
| LV-OPT 12 | $2,144.00 | Pour Pan For 7x8 Leveler | | |
| LV-OPT 12B | $2,484.00 | Pour Pan w/ Bumpers 7x8 Leveler | | |
| LV-OPT 13 | $2,393.00 | Pour Pan For 7x10 Leveler | | |
| LV-OPT 15 | $557.00 | 18" lip | ||
| LV-OPT 16 | $641.00 | 20" Lip | ||
| LV-OPT 19 | $446.00 | 35,000 lbs. Capacity | ||
| LV-OPT 21 | $901.00 | 45,000 lbs. Capacity | ||
| LV-OPT 22 | $398.00 | Weld Leveler Into Pan | ||
| LV-OPT 24 | $1,060.00 | 60,000 lbs. Capacity | ||
| LV-OPT 25 | $1,325.00 | Insulated Top Deck | ||

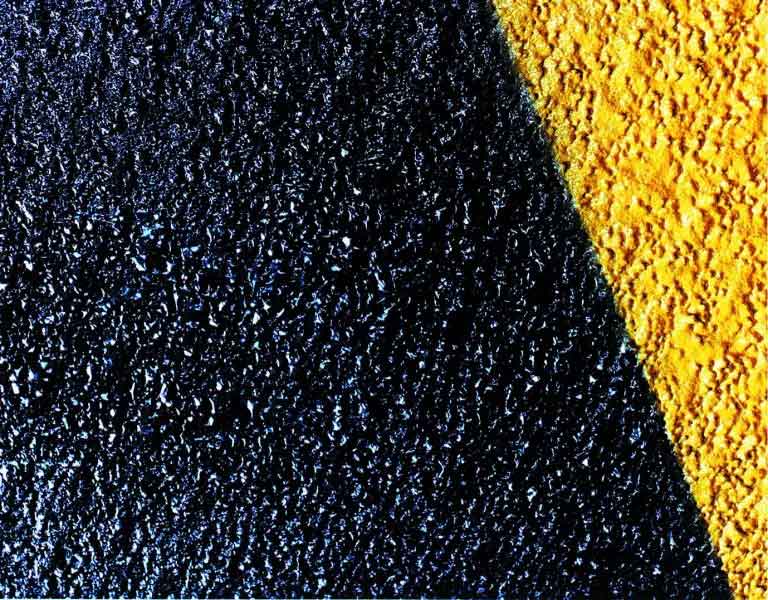

| LV-OPT 28 | $53.00 | Traction Grip Per Sq. Ft. | | |
| LV-OPT 30 | Call | Hot Dipped Galvanized | ||
| LV-OPT 32 | $424.00 | 6x6 Curb Angle Kit 3" | ||
| LV-OPT 33 | $477.00 | 6x8 Curb Angle Kit 3" |
Product Videos >>
Recent Custom Products
Call 800.535.5303 today to build your custom warehouse or construction equipment.
