Forklift Booms | Lift / Tilt Jibs
Forklift Booms (or Lift Jibs) allow for a variety of configurations, providing a flexible option when you need to lift and move long, bulky loads, such as bar stock, piping and tubing.

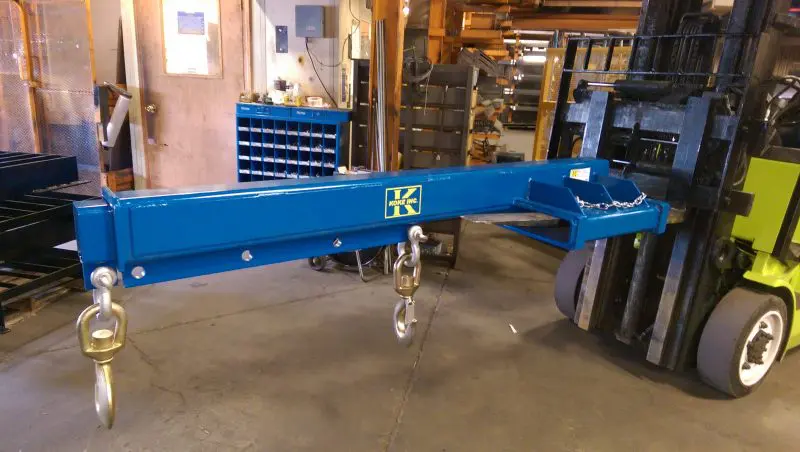

The forklift lift booms slide over the forks on your forklift and secure to lift truck with a safety chain. Multiple hole locations and (2) standard swivel hooks with shackles give you multiple lifting options.

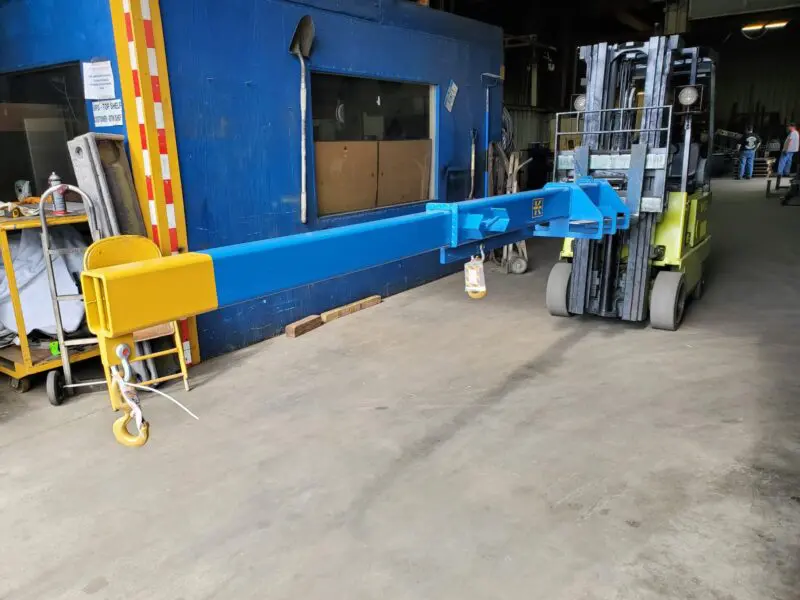

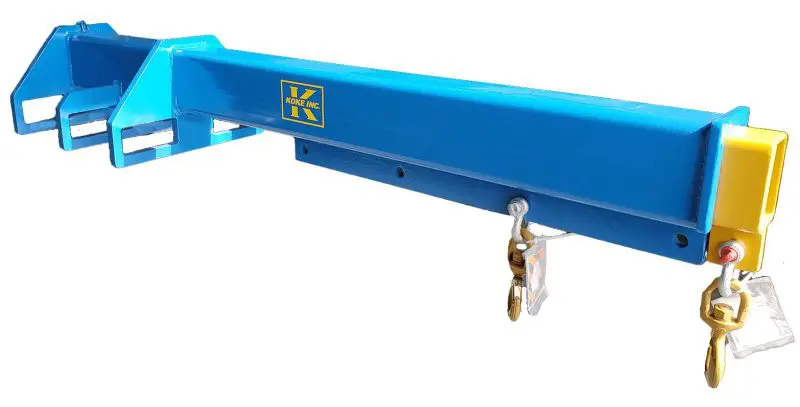

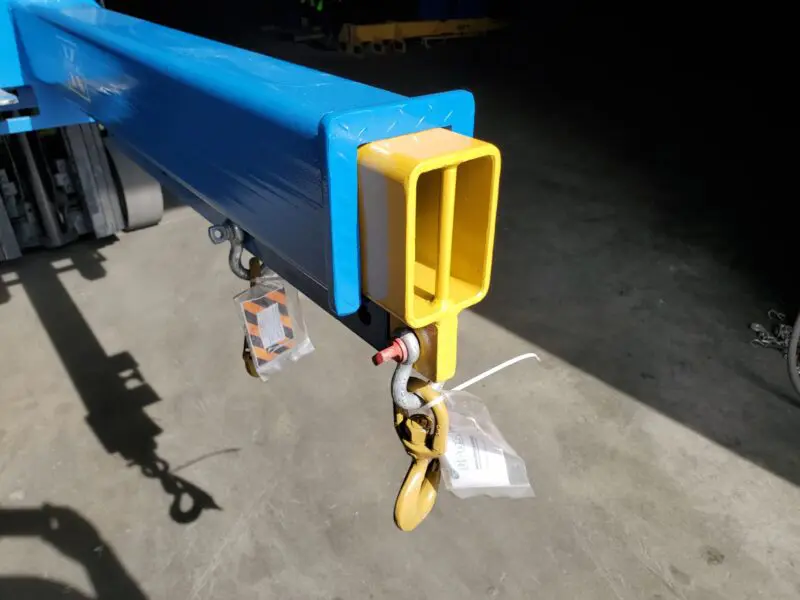

Koke’s standard lift jibs go from 82” retracted length to 144” fully extended. Loop handle on end allows for ease of extending the jib. T-lock on side screws clamps extension in place when desired telescopic length is set.

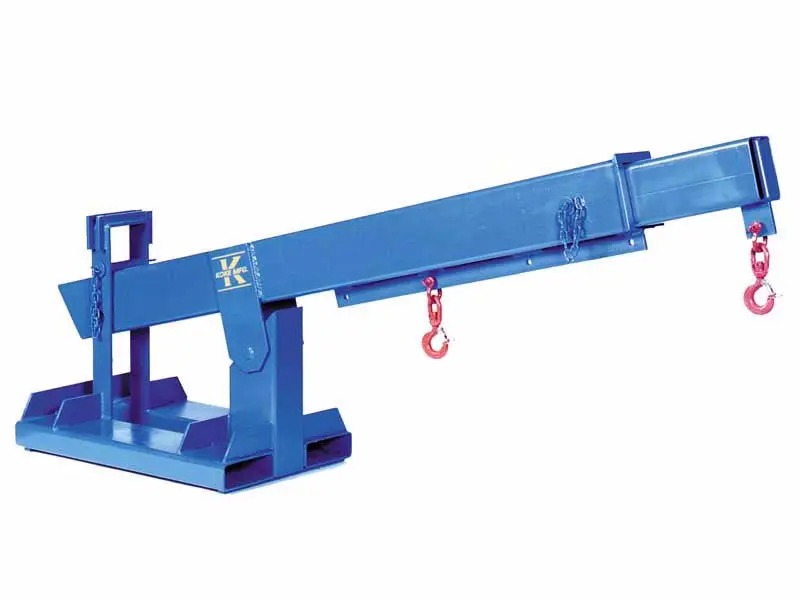

If you need additional lifting height, the tilting and telescoping lift jib has 3 vertical positions that can gain you up to 73” more vertical lift!
Standard capacities range from 3,000 lbs to 10,000 lbs. If you need custom forklift booms/lift jibs, please call us with your needs.
Features Of Our Fork Mounted Lift Jibs:
- Both lift jibs are fork mounted.
- Secured by chain to the fork carriage.
- All jibs come with two hooks.
- Fork pockets handle up to 2.5″ x 6″ forks on Liftjib models and up to 2″ x 7″ on Tiltjib models.
Check out some examples of our custom order lift jibs.
Product Downloadables
For More Info On Our Forklift Booms or to Buy Call 800.535.5303
Freight Class: 65
| Model | Price | Buy Now | Technical Drawing | Picture | Length Closed (Retracted) | Max Length Open (Extended) | Tilting | Capacity (lbs.) Closed/Open | Weight (lbs.) | LLC (inches) | HCG Closed/Open (inches) | VCG Closed/Open (inches) | Video |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LIFTJIB-1 | $2,677.00 | Buy Now |  | | 6'10" | 12' | NO | 3,000/1,500 | 375 | EFT | 34.53/52.24 | 7.24 | |
| LIFTJIB-2 | $3,528.00 | Buy Now | | | 6'10" | 12' | NO | 6,000/3,000 | 510 | EFT | 37.25/55.86 | 7.13 | |
| LIFTJIB-3 | $3,645.00 | Buy Now | | | 6'10" | 12' | NO | 8,000/4,000 | 525 | EFT | 37.45/56.15 | 7.10 | |
| LIFTJIB-4 | $4,218.00 | Buy Now | | | 6'10" | 12' | NO | 10,000/5,000 | 584 | EFT | 38.68/59.17 | 7.32 | |
| LIFTJIB-5 | $5,836.00 | Buy Now | |  | 6'10" | 12' | NO | 15,000/7,500 | 755 | EFT | 34.90/51.22 | 8.61 | |
| TILTJIB-1 | $4,019.00 | Buy Now | | | 6'10" | 12' | YES | 3,000/1,500 | 450 | EFT | 32.28/46.87 | 15.50 | |
| TILTJIB-2 | $5,331.00 | Buy Now | | | 6'10" | 12' | YES | 6,000/3,000 | 640 | EFT | 33.57/48.66 | 15.63 | |
| TILTJIB-3 | $5,399.00 | Buy Now | | | 6'10" | 12' | YES | 8,000/4,000 | 655 | EFT | 33.55/48.63 | 15.62 | |
| TILTJIB-4 | $5,905.00 | Buy Now | | | 6'10" | 12' | YES | 10,000/5,000 | 680 | EFT | 34.47/48.62 | 16.08 |
EFT=Effective Fork Thickness HCG=Horizontal Center of Gravity VCG=Vertical Center of Gravity
Product Options
| Option | Price | Buy Now | Description | Picture |
|---|---|---|---|---|
| JIB-OPT 01 | $368.00 | Buy Now | 4" x 12" Larger Fork Pockets Add |  |
| JIB-OPT 02 | $196.00 | Buy Now | 2"W x 4'L Nylon Sling 6,400 lb. Vertical Capacity |  |
| JIB-OPT 03 | $218.00 | Buy Now | 2"W x 6'L Nylon Sling 6,400 lb. Vertical Capacity | |
| JIB-OPT 04 | $835.00 | Buy Now | Carriage Mount (Not Available For Tilt Jib Models) |  |
Capacity Reference Chart
| Ref # | Lift Jib-1/Tilt Jib-1 | Lift Jib-2/Tilt Jib-2 | Lift Jib-3/Tilt Jib-3 | Lift Jib-4/Tilt Jib-4 | Lift Jib-5 | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Capacity (lbs) | ||||||||||
| A | 3,000 | 6,000 | 8,000 | 10,000 | 15,500 | |||||
| B | 2,900 | 5,800 | 7,733 | 9,660 | 14,490 | |||||
| C | 2,400 | 4,800 | 6,400 | 8,000 | 12,400 | |||||
| D | 2,000 | 4,000 | 5,333 | 6,760 | 10,478 | |||||
| E | 1,700 | 3,400 | 4,533 | 5,700 | 8,835 | |||||
| F | 1,500 | 3,000 | 4,000 | 5,000 | 7,500 | |||||
Product Videos >>
Recent Custom Products
Call 800.535.5303 today to build your custom warehouse or construction equipment.
