Material Lifting Basket/Crane Lifting Basket
The Koke Material Lifting Basket can be manufactured for your specific needs. It’s rugged tubular frame with plasma cut side panels provide a durable basket with visibility that can support up to 6,000 lbs. When you need to lift and transport materials and equipment on a job site, we can design a basket to suit your needs and budget. This includes baskets that you move by crane lift or a forklift. Options like doors, ramps, fork pockets and tie down systems can easily be incorporated into your material basket design. For chemical, corrosive and water applications, we offer a stainless steel option.

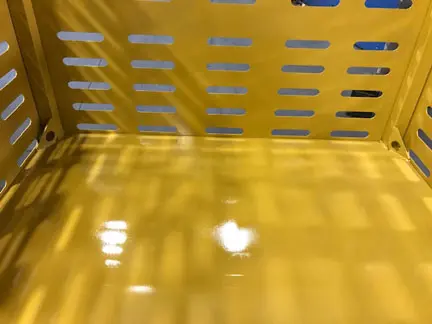

Each lifting basket base features standard 2 way forklift entry. There are (4) tie off points inside to secure materials for added safety when lifting by crane or forklift. Designed for freight only, these material hoist baskets are designed to move your items safely and securely. Includes standard fork pockets that fit up to 2×6 forks.
The hoist basket is painted in a high visibility yellow and contains (4) lifting lugs, one in each corner. So whether you are lifting a welder or a pallet full of sheet rock, we can design a crane material basket for your project. Need a higher capacity, different size or design for moving your materials? Then call us. We can build material baskets to fit almost any application imaginable. (If you have a need to move personnel, we have you covered there as well. We have a variety of crane man basket designs to choose from.)
The material basket is designed, manufactured and tested to meet all state, Federal and OSHA regulations related to overhead lifting.
Check out some examples of our custom order material lifting baskets. We also carry a number of other material and personnel moving equipment that can be lifted by cranes, including a man basket, crane hopper bucket, and heavy duty rescue basket.
Please view the following link of OSHA 29CFR for rules, regulations and testing requirements on crane baskets.
STANDARD FEATURES:
- Fully Welded steel construction
- Fully Engineered from CAD Drawing
- Test Certificate Included
- 2 Year Workmanship Warranty
- Unlimited Designs and Capacities

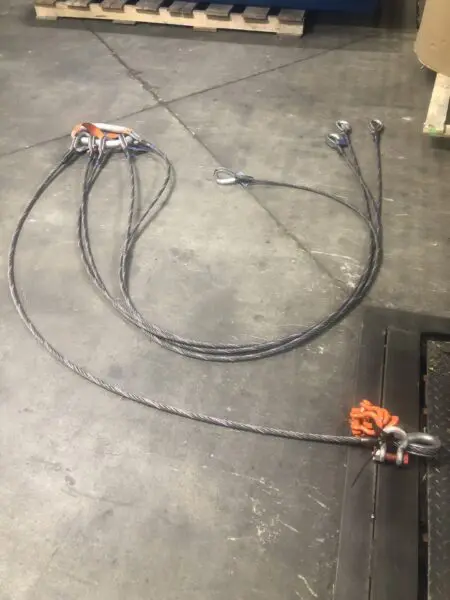

5-PT BRIDLE
Our 5PT Bridle includes: (4) Legs 10′ Long x 1/2″ Thick and a 5th Choker line 8′ Long x 5/8″ Thick. All of our baskets are designed with a lift angle of 60° or greater and our sling capacity is rated at 8.7 tons. Please click here for Bridle Capacity table.
Lifting Basket Product Downloadables
To Order Or Request A Custom Designed Material Lifting Basket, Call 800.535.5303
2,000 lbs. Capacity Models
| Model | Price | Buy Now | Technical Drawing | Picture | Usable W x L x H | Overall W x L x H | Door | Capacity (lbs.) | Weight (lbs.) | Video |
|---|---|---|---|---|---|---|---|---|---|---|

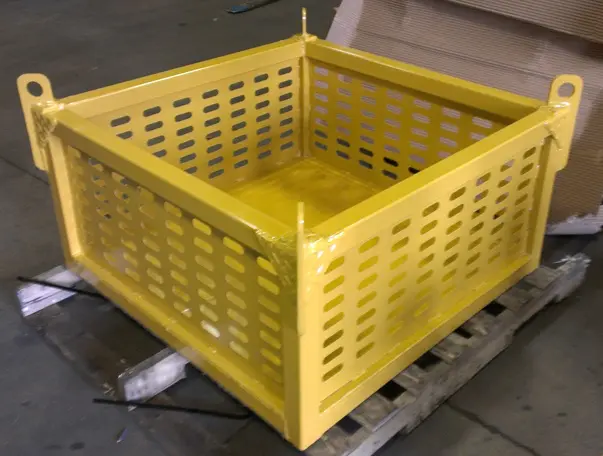

| MBM-1-2 | $3,090.00 | Buy Now |  |  | 36 x 36 x 24 | 42.5 x 42.5 x 32.5 | No | 2,000 | 340 | |
| MBM-2-2 | $3,413.00 | Buy Now | |  | 48 x 48 x 24 | 54.5 x 54.5 x 32.5 | No | 2,000 | 440 | |
| MBM-3-2 | $3,640.00 | Buy Now | |  | 48 x 48 x 36 | 54.5 x 54.5 x 44.5 | No | 2,000 | 558 | |
| MBM-4-2 | $4,130.00 | Buy Now | | | 48 x 48 x 48 | 54.5 x 54.5 x 56.5 | Yes | 2,000 | 690 | |
| MBM-5-2 | $5,065.00 | Buy Now | |  | 50 x 98 x 36 | 56.5 x 104.5 x 44.5 | Yes | 2,000 | 1100 | |
| MBM-6-2 | $5,329.00 | Buy Now | |  | 50 x 98 x 48 | 56.5 x 104.5 x 56.5 | Yes | 2,000 | 1200 | |
| MBM-7-2 | $6,156.00 | Buy Now | |  | 50 x 122 x 48 | 56.5 x 128.5 x 56.5 | Yes | 2,000 | 1408 | |
| MBM-8-2 | $4,872.00 | Buy Now | 60 x 48 x 48 | 66.5 x 54.5 x 56.5 | Yes | 2,000 | 840 | |||
| MBM-9-2 | $6,087.00 | Buy Now | | | 60 x 60 x 48 | 66.5 x 66.5 x 56.5 | Yes | 2,000 | 915 | |
| MBM-10-2 | $6,395.00 | Buy Now |  | 60 x 98 x 48 | 66.5 x 104.5 x 56.5 | Yes | 2,000 | 1305 | ||
| MBM-11-2 | $7,387.00 | Buy Now | 60 x 122 x 48 | 66.5 x 128.5 x 56.5 | Yes | 2,000 | 1680 |
4,000 lbs. Capacity Models
| Model | Price | Buy Now | Technical Drawing | Picture | Usable W x L x H | Overall W x L x H | Door | Capacity (lbs.) | Weight (lbs.) | Video |
|---|---|---|---|---|---|---|---|---|---|---|
| MBM-1-4 | $3,230.00 | Buy Now | | | 36 x 36 x 24 | 42.5 x 42.5 x 32.5 | No | 4,000 | 380 | |
| MBM-2-4 | $3,618.00 | Buy Now | | | 48 x 48 x 24 | 54.5 x 54.5 x 32.5 | No | 4,000 | 540 | |

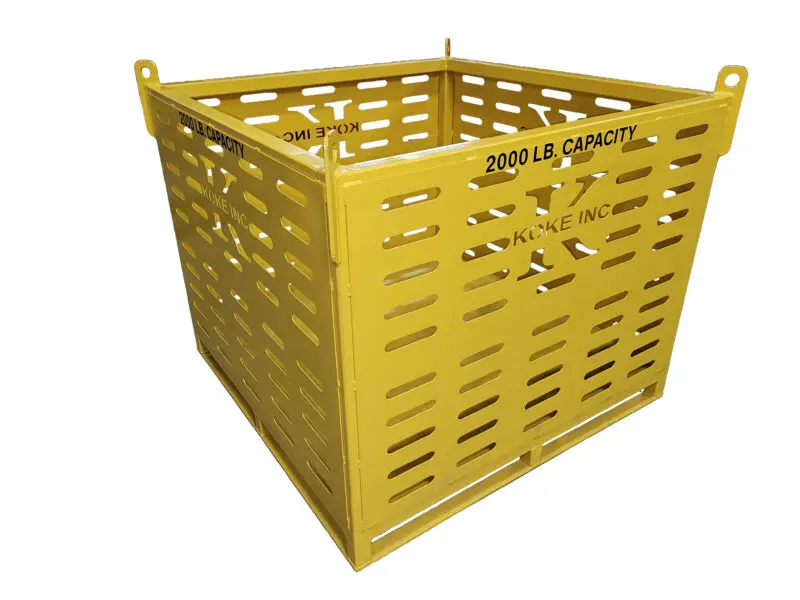

| MBM-3-4 | $3,878.00 | Buy Now | | | 48 x 48 x 36 | 54.5 x 54.5 x 44.5 | No | 4,000 | 600 | |
| MBM-4-4 | $4,528.00 | Buy Now | | | 48 x 48 x 48 | 54.5 x 54.5 x 56.5 | Yes | 4,000 | 720 | |
| MBM-5-4 | $5,517.00 | Buy Now | |  | 50 x 98 x 36 | 56.5 x 104.5 x 44.5 | Yes | 4,000 | 1200 | |
| MBM-6-4 | $5,827.00 | Buy Now | |  | 50 x 98 x 48 | 56.5 x 104.5 x 56.5 | Yes | 4,000 | 1300 | |
| MBM-7-4 | $6,763.00 | Buy Now | |  | 50 x 122 x 48 | 56.5 x 128.5 x 56.5 | Yes | 4,000 | 1475 | |
| MBM-8-4 | $5,659.00 | Buy Now | 60 x 48 x 48 | 66.5 x 54.5 x 56.5 | Yes | 4,000 | 878 | |||
| MBM-9-4 | $6,758.00 | Buy Now | | | 60 x 60 x 48 | 66.5 x 66.5 x 56.5 | Yes | 4,000 | 1000 | |
| MBM-10-4 | $7,307.00 | Buy Now | | 60 x 98 x 48 | 66.5 x 104.5 x 56.5 | Yes | 4,000 | 1363 | ||
| MBM-11-4 | $8,115.00 | Buy Now | 60 x 122 x 48 | 66.5 x 128.5 x 56.5 | Yes | 4,000 | 2132 |
6,000 lbs. Capacity Models
| Model | Price | Buy Now | Technical Drawing | Picture | Usable W x L x H | Overall W x L x H | Door | Capacity (lbs.) | Weight (lbs.) | Video |
|---|---|---|---|---|---|---|---|---|---|---|
| MBM-1-6 | $3,335.00 | Buy Now | | | 36 x 36 x 24 | 42.5 x 42.5 x 32.5 | No | 6,000 | 420 | |
| MBM-2-6 | $3,741.00 | Buy Now | | | 48 x 48 x 24 | 54.5 x 54.5 x 32.5 | No | 6,000 | 580 | |
| MBM-3-6 | $4,397.00 | Buy Now | | | 48 x 48 x 36 | 54.5 x 54.5 x 44.5 | No | 6,000 | 720 | |
| MBM-4-6 | $4,798.00 | Buy Now | | | 48 x 48 x 48 | 54.5 x 54.5 x 56.5 | Yes | 6,000 | 730 | |
| MBM-5-6 | $6,078.00 | Buy Now | | | 50 x 98 x 36 | 56.5 x 104.5 x 44.5 | Yes | 6,000 | 1350 | |
| MBM-6-6 | $6,140.00 | Buy Now | | | 50 x 98 x 48 | 56.5 x 104.5 x 56.5 | Yes | 6,000 | 1650 | |
| MBM-7-6 | $6,962.00 | Buy Now | | | 50 x 122 x 48 | 56.5 x 128.5 x 56.5 | Yes | 6,000 | 1859 | |
| MBM-8-6 | $5,998.00 | Buy Now | 60 x 48 x 48 | 66.5 x 54.5 x 56.5 | Yes | 6,000 | 1092 | |||
| MBM-9-6 | $7,298.00 | Buy Now | | | 60 x 60 x 48 | 66.5 x 66.5 x 56.5 | Yes | 6,000 | 1165 | |
| MBM-10-6 | $8,033.00 | Buy Now | | 60 x 98 x 48 | 66.5 x 104.5 x 56.5 | Yes | 6,000 | 2017 | ||
| MBM-11-6 | $8,836.00 | Buy Now | 60 x 122 x 48 | 66.5 x 128.5 x 56.5 | Yes | 6,000 | 2130 |
Product Options
| Option | Price | Buy Now | Description | Picture |
|---|---|---|---|---|
| MB-O-TD | $73.00 | Buy Now | Additional Tie Down Anchor Points In Floor Corners (4 Std) *MUST BE ORDERED WITH ONE OF THE BASKETS ABOVE* | |
| MB-O-C6S | $409.00 | Buy Now | 6" Steel Casters - All Swivel *MUST BE ORDERED WITH ONE OF THE BASKETS ABOVE* |  |

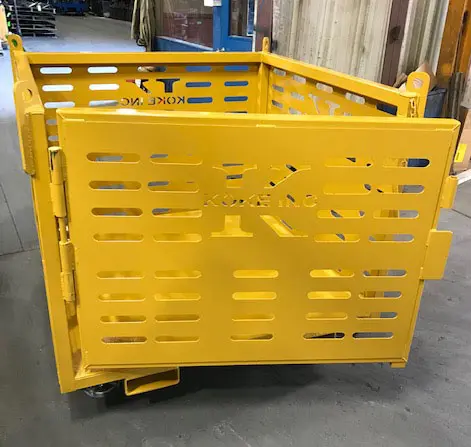

| MB-O-DOOR | $735.00 | Buy Now | Swing Out Door Add On *MUST BE ORDERED WITH ONE OF THE BASKETS ABOVE* |  |
| MB-O-BR104 | $1,668.00 | Buy Now | 4-Pt Bridle With 10' Legs & 5th Choker Line 8,000 Lbs. Capacity |  |
| MB-O-GR | $1,236.00 | Buy Now | 1" x 4" Steel Grating Floor *MUST BE ORDERED WITH ONE OF THE BASKETS ABOVE* |  |
| MB-O-SS | CALL | Stainless Steel Construction | ||
| MB-O-R-24 | $1,208.00 | Buy Now | 24" Ramp - For Series 1-11 Basket *MUST BE ORDERED WITH ONE OF THE MAN BASKETS ABOVE* |  |
| MB-O-R-36 | $1,365.00 | Buy Now | 36" Ramp - For Series 3-11 Basket *MUST BE ORDERED WITH ONE OF THE MAN BASKETS ABOVE* | |
| MB-O-R-48 | $1,523.00 | Buy Now | 48" Ramp - For Series 7-11 Basket *MUST BE ORDERED WITH ONE OF THE MAN BASKETS ABOVE* |
