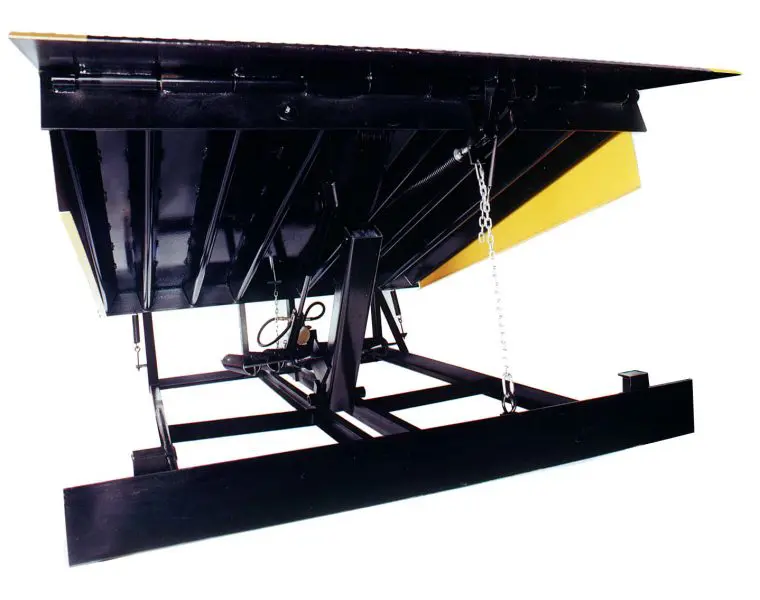

Mechanical Dock Levelers
For customers that prefer mechanical dock levelers over hydraulic models, we have a number of durable options.
Our mechanical dock levelers have the same weight capacity (27,000 pounds), but are lighter, with the smallest mechanical leveler weighing in at 1,225 pounds (6’ x 6’ dock leveler) up to 1,650 pounds (7’ x 8’ dock leveler).
The Koke mechanical dock leveler features a 16-inch lip, an articulating top deck, safety tread plates for best and maximum traction, as well as safety toe guards.
The mechanical dock leveler does have one hydraulic component, one that makes operating the leveler easy: its hydraulic hold down. In just one move an operator can pull and hold the lift chain for the top deck and lip raise. Assembling and operating is straightforward, and with proper care and maintenance, your mechanical dock leveler will give many years of trouble free service.
Dock Leveler Features:
- 16″ lip
- Articulating top deck
- Safety tread plate for maximum traction
- Safety toe guards
The most popular options available with these dock levelers include an 18″ lip, 35,000 lbs capacity and an insulated top deck.
Product Downloadables
Order Your New Mechanical Dock Levelers Today At 800.535.5303
| Model | Price | Technical Drawing | Picture | Width | Length | Pit Size (L x W x D) | Capacity (lbs.) | Weight (lbs.) | Video |
|---|---|---|---|---|---|---|---|---|---|
| KMD-6627 | $7,375.00 | | 6' | 6' | 63"x74"x23" | 27,000 | 1250 | ||
| KMD-6827 | $7,764.00 | | 6' | 8' | 87"x74"x23" | 27,000 | 1525 | ||
| KMD-7627 | $7,653.00 | | 7' | 6' | 63"x86"x23" | 27,000 | 1350 | ||
| KMD-7827 | $7,903.00 | | 7' | 8' | 87"x86"x23" | 27,000 | 1600 |
Product Options
| Option | Price | Description | Picture |
|---|---|---|---|
| BUMPKIT | $263.00 | (2) Bumpers w/ Hardware |  |
| LV-OPT 02 | $334.00 | Lip Hinge Lubrication | |

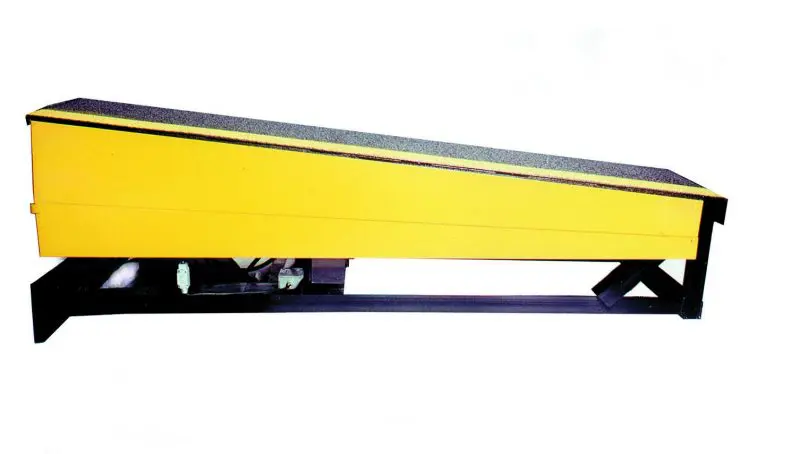

| LV-OPT 03 | $530.00 | Telescoping Toe Guards |  |
| LV-OPT 04 | $557.00 | Add-On For Special Size | |
| LV-OPT-07 | $363.00 | 3 Sides Weather Seal |  |
| LV-OPT 07N | $553.00 | 3 Sides Brush Seals w/ Neoprene |  |
| LV-OPT 09 | $1,887.00 | Pour Pan For 6x6 Leveler |  |
| LV-OPT 09B | $2,894.00 | Pour Pan w/ Bumpers - 6x6 Leveler |  |
| LV-OPT 10 | $2,299.00 | Pour Pan For 6x8 Leveler | |
| LV-OPT 10B | $3,006.00 | Pour Pan w/ Bumpers - 6x8 Leveler | |
| LV-OPT 12 | $2,144.00 | Pour Pan For 7x8 Leveler | |
| LV-OPT 08 | $2,060.00 | Pour Pan For 7x6 Leveler | |
| LV-OPT 15 | $557.00 | 18" Lip | |
| LV-OPT 19 | $446.00 | 35,000 lbs. Capacity | |
| LV-OPT 22 | $418.00 | Weld Leveler To Pan | |
| LV-OPT 25 | $1,392.00 | Insulated Top Deck | |
| LV-OPT 28 | $56.00 | Traction Grip Per Sq. Ft. | |
| LV-OPT 30 | Call | Hot Dipped Galvanized | |
| LV-OPT 32 | $424.00 | 6x6 Curb Angle Kit 3" | |
| LV-OPT 33 | $477.00 | 6x8 Curb Angle Kit 3" | |
| LV-OPT 42 | N/C | 3-Wheel Truck Support |
