Order picker platforms are designed to withstand constant use in today’s warehouses with narrow aisle racking layouts. They are manufactured and designed to endure – and endure well – the relentless use they receive in today’s manufacturing facilities, warehouses, and distribution centers.
Whether you’re looking for an order picker cart that can maneuver more easily through your warehouse’s narrow aisles, need an order picker forklift platform custom-made for your machine, or you need one with built-in or removable shelving, you can have it made to our exact specifications and desires. Our most popular options such as rails, casters, shelves, and anti-skid surfaces are available to customize to fit your needs. Why customize your order picker?

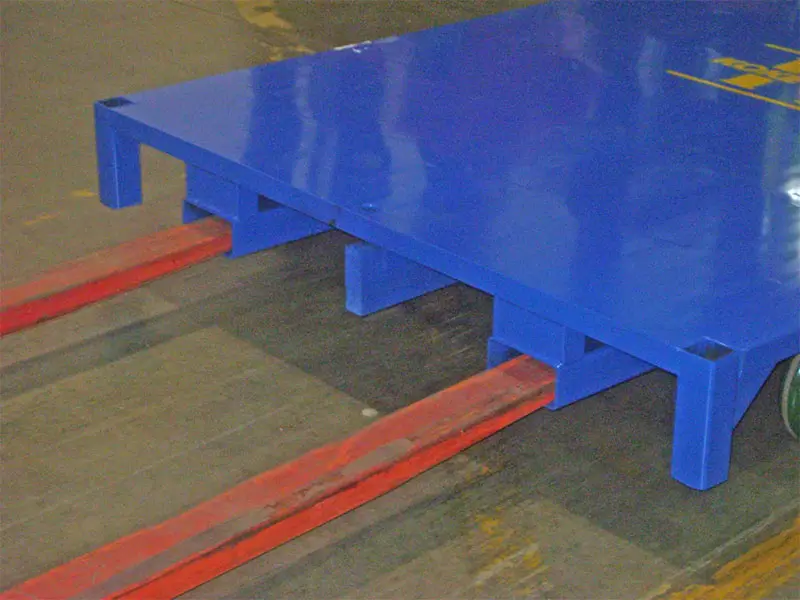

Our order pickers are made in either steel or aluminum and provide a solid, smooth top deck on which to place picked orders. Fork pockets that are full-length in size provide the order picker platforms additional strength and rigidity. Many platforms provide pallet grab wood blocks so that the platform can be secured to the order picker. Some options include end and side handles that can be placed in either a detachable or immobile style. You also could order options such as an anti-skid surface (on the platform itself), shelving, and even casters. For those hard and abusive applications, we offer a Heavy Duty Upgrade that includes tubular framing and re-enforced fork pockets for stronger base support.
All order picker platforms are custom built to meet the specs of your order picker. The sizes you see in the table below are the most common we build. If you don’t see what you want, don’t worry. Custom sizes and features are available upon request. Learn why so many in the industry have turned to us for their order picker platform needs.
Check out some examples of custom order picker platforms.
| PREMIUM | STEEL | PREMIUM TOW |
 |  |  |
Polyurethane on Polyolefin Core 4” to 8” sizes x 2” wide Precision Ball Bearing 900lbs. Capacity Medium Duty Type | Steel Wheel 4” to 8” sizes x 2” wide Roller Bearing 2000lbs. Capacity General Duty Type | Green Polyurethane On Aluminum Core Crowned Radius 6” or 8” size x 2” wide Precision Ball Bearing 1,250lbs. Capacity Heavy Duty Type |
Customize Your Order Picker Platform Today – Call 800.535.5303
Freight Class: 85
| MODEL | SIZE (W x L) | CAPACITY (LBS.) | WEIGHT (LBS.) STEEL | WEIGHT (LBS.) ALUMINUM | PRICE STEEL | PRICE ALUMINUM |
|---|---|---|---|---|---|---|
| OP-3648 | 36×48 | 1,500 | 148 | 105 | $1,447.00 | $2,171.00 |
| OP-3660 | 36×60 | 1,500 | 185 | 131 | $1,616.00 | $2,215.00 |
| OP-4048 | 40×48 | 1,500 | 165 | 118 | $1,515.00 | $1,853.00 |
| OP-4060 | 40×60 | 1,500 | 206 | 146 | $1,633.00 | $2,230.00 |
| OP-4072 | 40×72 | 1,500 | 247 | 175 | $1,813.00 | $2,440.00 |
| OP-4248 | 42×48 | 1,500 | 173 | 122 | $1,525.00 | $2,100.00 |
| OP-4260 | 42×60 | 1,500 | 216 | 153 | $1,618.00 | $2,240.00 |
| OP-4272 | 42×72 | 1,500 | 259 | 184 | $1,821.00 | $2,320.00 |
| OP-4296 | 42×96 | 1,500 | 375 | 265 | $2,063.00 | $2,795.00 |
| OP-4842 | 48×42 | 1,500 | 173 | 122 | $1,525.00 | $1,885.00 |
| OP-4848 | 48×48 | 1,500 | 197 | 140 | $1,557.00 | $1,885.00 |
| OP-4860 | 48×60 | 1,500 | 247 | 175 | $1,783.00 | $2,264.00 |
| OP-5448 | 54×48 | 1,500 | 222 | 155 | $1,783.00 | $2,264.00 |
| OP-4872 | 48×72 | 1,500 | 296 | 210 | $1,924.00 | $2,265.00 |
| OP-4896 | 48×96 | 1,500 | 395 | 280 | $2,089.00 | $2,795.00 |
| OP-6096 | 60×96 | 1,500 | 590 | 425 | $2,570.00 | $3,850.00 |
Please add an “A” or “S” at end of part number to denote Aluminum or Steel Material
| OPTION | DESCRIPTION | PRICE STEEL | PRICE ALUMINUM |
|---|---|---|---|
| OP-H-SRAIL | 1 FIXED SIDE RAIL UP TO 96”L x 42″H | $350.00 | $425.00 |
| OP-H-ERAIL | 1 FIXED END RAIL UP TO 48”L x 42″H | $280.00 | $315.00 |
| OP-H-REM | TO MAKE RAIL REMOVABLE-ADD PER RAIL LOCATION | $120.00 | $140.00 |
| OP-O-EDOOR | UP TO 48″W SWINGING END DOOR | $396.00 | CALL |
| OP-H-HD | HEAVY DUTY RAIL ADD-ON | $150.00 | $225.00 |
| OP-H-PULL | 6″D x 12″H “H PULL HANDLES | $140.00 | $195.00 |
| OP-H-PUSH | PUSH HANDLE ON END RAIL | $140.00 | $195.00 |
| OP-H-ME-1 | MESH ON END RAIL ADD UP to 54″ WIDE | $200.00 | CALL |
| OP-H-MS-2 | MESH ON SIDE RAIL ADD UP to 96″ WIDE | $330.00 | CALL |
| OP-C-5P | 5″ PREMIUM POLY CASTERS (40″+ WIDE DECKS) | $225.00 | $225.00 |
| OP-C-SL | SWIVEL LOCK OPTION PER CASTER | $25.00 | $25.00 |
| OP-C-BR | BUTTERFLY BRAKE ON CASTER | $31.25 | $31.25 |
| OP-O-FL5 | 5″ FLOOR LOCK | $75.00 | $75.00 |
| OP-O-FPB | SQUARE FORK POCKETS TO FIT BOXED FORKS (4″x4″) | $220.00 | 310.00 |
| OP-O-DPLT | UPGRADE DECK TO DIAMOND PLATE | $140.00 | N/A |
| OP-O-SHFD | FOLD UP SHELF OPTION | $210.00 | N/A |

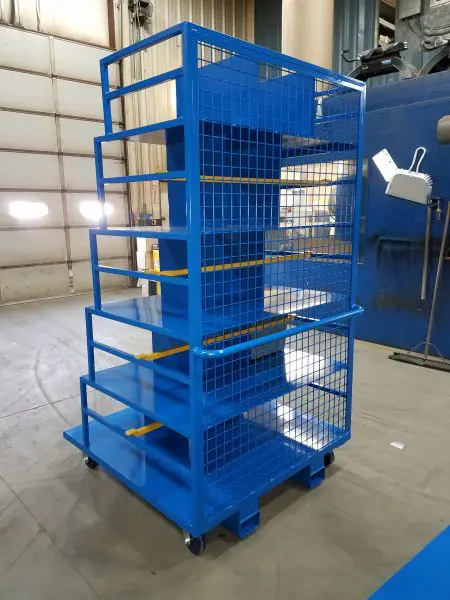

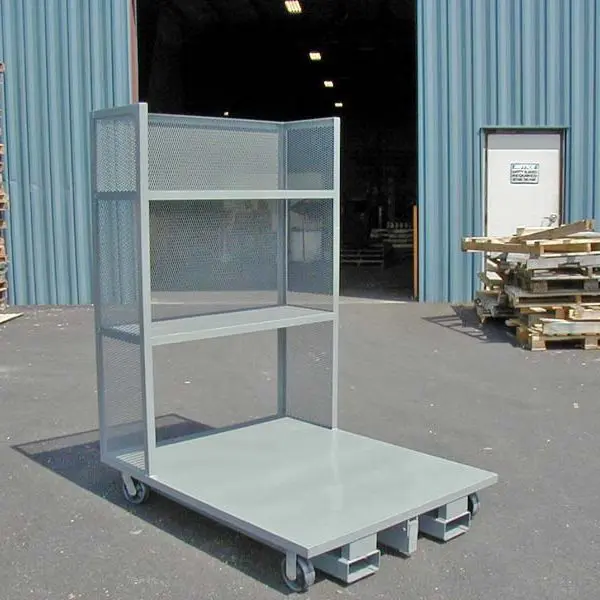

| OP-O-SH1 | 1 SHELF 24″Dx48″H-MESH ENCLOSED ON 3 SIDES | $770.00 | $1,458.00 |
| OP-O-SH2 | 2 SHELF 24″Dx72″H-MESH ENCLOSED ON 3 SIDES | $1,182.00 | $1,767.00 |
| OP-O-SH3 | 3 SHELF 24″Dx72″H-MESH ENCLOSED ON 3 SIDES | $1,497.00 | $2,952.00 |
| OP-O-SH4 | 4 SHELF 24″Dx72″H-MESH ENCLOSED ON 3 SIDES | $1,865.00 | $4,117.00 |
| OP-O-DESK | 36″ DESK WITH 4″ LIPS ON 3 SIDES | $770.00 | $1,155.00 |
| OP-O-ADJS | ADJ. SHELVES IN 6″ INCREMENTS | $550.00 | $935.00 |
| OP-O-RAMP | 24″L HINGED RAMP | $650.00 | $950.00 |
| OP-O-DWR | 24″W x 6’H SLIDE OUT DRAWER | $325.00 | N/A |
| OP-O-SKTAPE | 6″ WIDE ANTI-SKID TAPE PER LN. FT. | $13.00 | $13.00 |
| OP-O-3K | 3,000LBS. CAPACITY ADD | $300.00 | $385.00 |
| OP-O-RDK | 3/8” RUBBER FLOOR SURFACE PER SQ. FT. | $25.00 | $25.00 |
| OP-O-RCB | RUBBER CLAMP BLOCK UPGRADE (REPLACES WOOD) | $76.00 | $76.00 |
| OP-O-CB3 | SET OF (2) 3″X3″ CORNER BUMPERS | $100.00 | $100.00 |

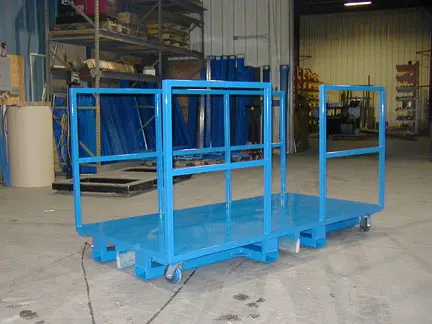

| OP-O-4WAY | 4 WAY ENTRY ACCESS | $660.00 | $875.00 |
| OP-O-COLOR | CUSTOM PAINT COLOR CHARGE | $200.00 | N/A |
| OP-O-TCAS | 8″ H.D. RADIUS EDGE TOW CASTERS | $485.00 | $485.00 |
| OP-O-TOW | TOW PACKAGE-SPECIFY MALE OR FEMALE | $415.00 | $415.00 |
At Koke, we know that as the warehouse industry continues to boom and inventories increase, businesses need to have equipment that boosts their capability to move, pick and ship products efficiently. That’s why our order picker platforms are built to last and can be customized to handle any type of inventory or warehouse layout.
Why Choose Koke?
Koke keeps our products simple, durable, and effective. Our order picker platforms not only perform well but are designed to fit equipment properly so both inventory and employees are protected. Cheap platforms available from other manufacturers don’t come close to meeting our specifications and can’t compete with the quality and finish you’ll find in all Koke products.
Designed for efficiency, durability
Because warehouses and products come in all shapes and sizes, Koke not only makes a variety of standard order picker platform sizes ranging from 36” x 48” to 60” x 96,” we also give our clients customizable sizing options. Whether your company needs a sturdy platform for an order picker that’s handling large stock or a custom compact platform to help navigate narrow aisles our team can make it happen.
When Koke platforms go to work on the warehouse floor, we guarantee they will withstand the rigors of constant, heavy use. Our order picker platforms are available either aluminum or steel and have a solid smooth top deck. For platforms that need to withstand the most punishing warehouse workloads, we offer our Heavy Duty Upgrade that includes tubular framing and re-enforced fork pockets for stronger base support.
Because Koke is recognized for manufacturing the best platforms in the warehouse industry, we’ve partnered with leading order picker machine and truck manufacturers to design and build platforms that fit their machines perfectly.
Koke manufactures order picking platforms for Crown, Raymond Corp., and Yale Inc. to help bring their products to the next level. These companies offer just about every kind of warehouse vehicle from reach forklift trucks to high-tech, automated guided vehicles.
Crown’s order pickers, reach and aisle trucks, stackers and forklifts offer superior performance and award-winning designs that make our team at Koke proud to partner with them. Combined with Koke platforms, order pickers from Crown can skillfully lift and maneuver anything from large, high-end furniture to delicate, smaller items (and everything in between).
Raymond Corp. provides products to furniture industry warehouses and their order picker truck is specifically designed for furniture handling needs. Paired with Koke platforms, this machine efficiently tackles heavy, bulky, and odd-sized loads.
For furniture selectors that put a premium on ergonomics and operator performance, Yale, Inc. is an industry leader. Yale’s order and straddle selectors provide reliable performance that will keep operators working steadily shift after shift. Koke platforms help their machines operate more safely by keeping products securely on the lift.
Tap into our experience — Koke’s expert reps are always available to help customers find the best platforms for their businesses. If you’re not sure which platforms are compatible with your order picking machines or need information on a custom order, call us at 800-535-5303.
