Rail Dock boards

Steel rail dock boards are designed for usage on all types of rail applications, such as box and refrigerated cars. Industries such as paper and lumber rely on these heavy-duty steel rail boards to move product in and out of rail cars.

Every steel rail board is built to match the specifications of your dock, therefore a completed rail dock board work sheet is required with every order to assure proper sizing and capacity. You can find this work sheet at the bottom of this page.

All steel rail dock boards feature built-in lift loops for ease of moving. A durable box under structure fills up much of the gap between the dock and the rail car, and standard D-rings complete the locking of the board to the rail car and dock.

Rail dock boards can be manufactured with flairs on either car or dock side to assist you with tight turning areas. Please contact us for these applications.

Steel rail boards are available in capacities up to 80,000 lbs.

Rectangular or flared boards are available in capacities up to 40,000 lbs. Lift loops and spacer rings are standard. Each Rail Dock board is manufactured according to the information supplied on the Rail Dockboard Worksheet below.

Dockplate & Dockboard Selection Guide »

Rail Dock board Worksheet

Rail Dockboards

Specification Details

  • Rail Dockboards are available in 10°, 20° & 30° flairs. Please consult factory for dimensions and pricing.
  • This field is for validation purposes and should be left unchanged.
  • Railboard(Blk&Ylw)

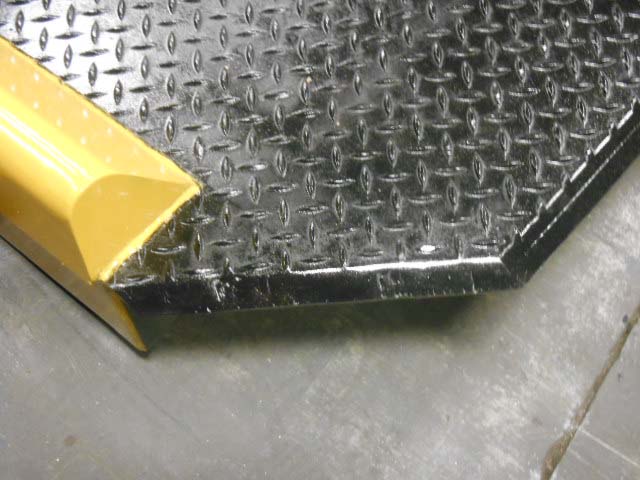

  • Chamfered Edge

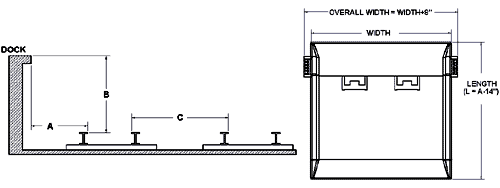

  • side view
Have Questions or to Order Call the Experts 800.535.5303

Product Details & Pricing

SIZE DIMENSION
“A”
RANGE
15,000 LB.
CAPACITY
25,000 LB.
CAPACITY
40,000 LB.
CAPACITY
60,000 LB.
CAPACITY
W L
96″ Up to 36″ 0″ – 50″ $2,918.00 $3,071.00 $3,607.00 Call
96″ 37″-48″ 57″ – 62″ $3,134.00 $3,338.00 $3,925.00 Call
96″ 49″-60″ 63″ – 74″ $3,333.00 $3,588.00 $4,226.00 Call
102″ Up to 36″ 0″ – 50″ $3,058.00 $3,294.00 $3,823.00 Call
102″ 37″-48″ 57″ – 62″ $3,314.00 $3,569.00 $4,208.00 Call
102″ 49″-60″ 63″ – 74″ $3,554.00 $3,873.00 $4,575.00 Call
120″ Up to 36″ 0″ – 50″ $3,304.00 $3,559.00 $4,198.00 Call
120″ 37″-48″ 57″ – 62″ $3,357.00 $3,612.00 $4,250.00 Call
120″ 49″-60″ 63″ – 74″ $3,597.00 $3,915.00 $4,617.00 Call

Product Options

OPTION DESCRIPTION PRICE
RB-OPT 01 LIFTING CHAINS & LIFT LOOPS $350.00
RB-OPT 02 LIFTING CHAINS IN PLACE OF LOOPS N/C
RB-OPT 03 FLARED BOARD-SPECIFY SIZE CALL
