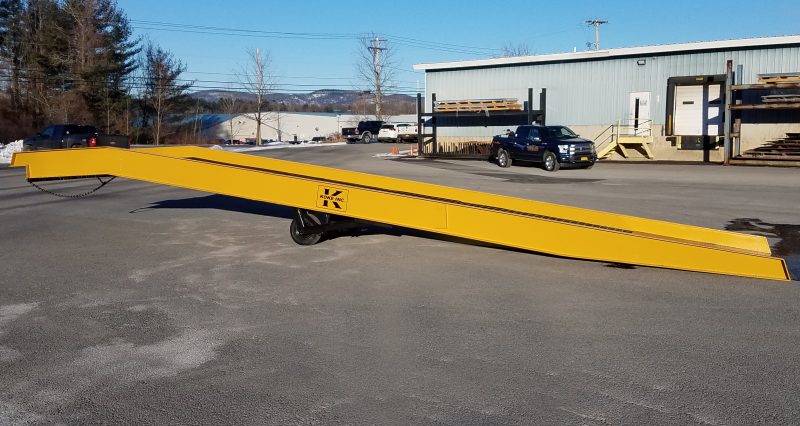

Yard Ramps (All Steel)
Our all steel yard ramps are built for ground to loading dock and ground to trailer applications. The double acting pump brings the yard ramp up to the desired height quickly for fast, efficient product transport. Serrated steel grating provides for traction, as well as offers escape for snow, ice and debris build-up. Standard ramp positioner attaches to forklift fork and makes moving the dock ramp a breeze!
This portable loading dock ramp is easy to move, goes anywhere and lets you move freight quickly. Large 16” solid pneumatic tires work well on hard packed surfaces. Optional tandem wheels are ideal for loose soil conditions.
For ground to trailer usage, the 6-foot level off yard ramp is recommended for safe, level unloading. Our 16” lip extends into trailer, and yard ramp is secured to trailer with safety chains.
Standard capacities are 16,000, 20,000, 25,000 and 30,000 lbs. 68” and 80” widths are standard. Custom sizes and capacities are available upon request.
As a yard ramp manufacturer, we will help you select the proper dock ramp for you application.
Yard Ramp/Loading Dock Ramp Features:

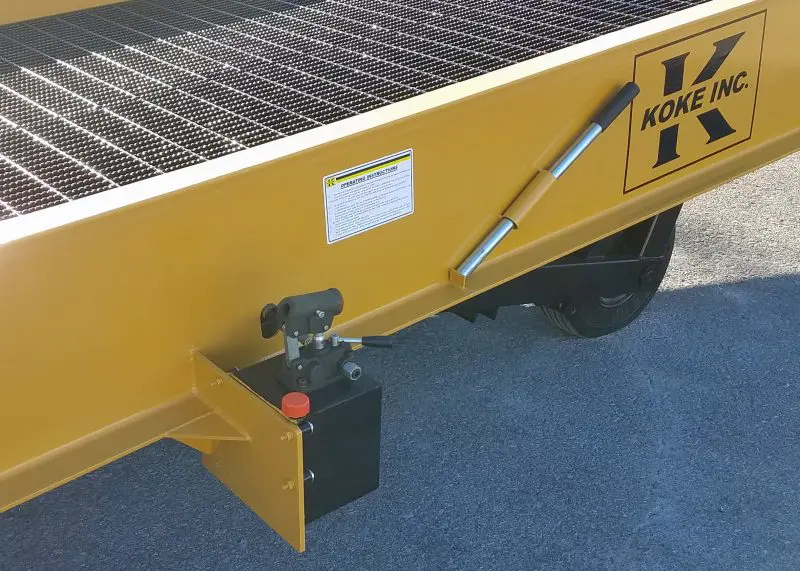

- All steel yard ramp with manual hydraulic pump.
- Working range from 38″ to 62″
- 8″H curbs
- 16″ lip
- Safety chain

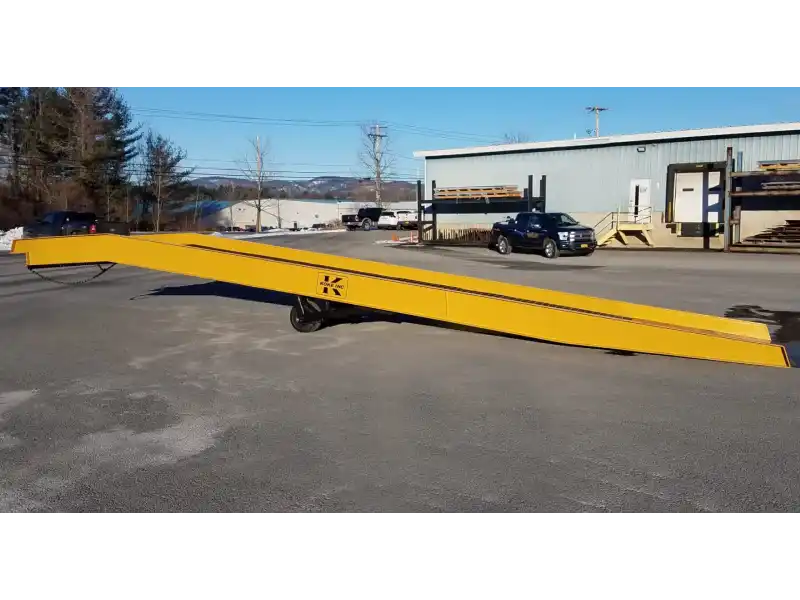

- Model numbers ending in “L” include 6′ level off (recommended for use with trailers).

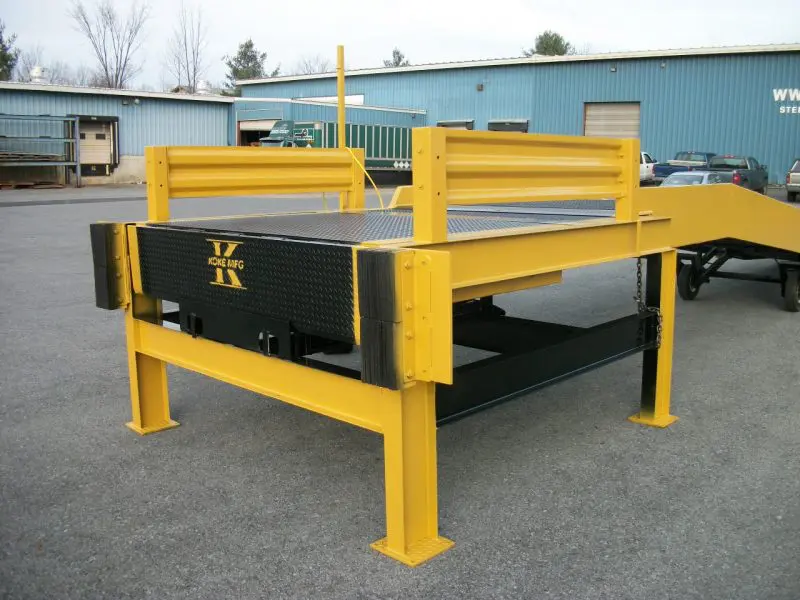

Check out some examples of our custom order yard ramps.
Product Downloadables
LOADING & UNLOADING YARD RAMPS
Yard Ramps Require (2) Forklifts to safely load and unload them. Please see the video at the bottom of this page to view the process.
Order Your Yard Ramp Today – Call 800.535.5303
Freight Class: Special Shipping – Contact Factory
16,000 lbs. Capacity Models
| Model | Price | Technical Drawing | Picture | Capacity (lbs.) | Overall Width | Usable Width | Length | Weight (lbs.) | Video |
|---|---|---|---|---|---|---|---|---|---|
| 16YSD6830 | $22,631.00 | 16,000 lb. | 68" | 62" | 30' | 4,175 | |||
| 16YSD6836L | $23,190.00 | 16,000 lb. | 68" | 62" | 36' | 5,120 | |||
| 16YSD8030 | $23,451.00 | 16,000 lb. | 80" | 74" | 30' | 4,985 | |||
| 16YSD8036L | $24,956.00 | 16,000 lb. | 80" | 74" | 36' | 5,850 |
20,000 lbs. Capacity Models
| Model | Price | Technical Drawing | Picture | Capacity (lbs.) | Overall Width | Usable Width | Length | Weight (lbs.) | Video |
|---|---|---|---|---|---|---|---|---|---|
| 20YSD6830 | $23,763.00 | 20,000 lb. | 68" | 62" | 30' | 4,385 | |||
| 20YSD6836L | $24,350.00 | 20,000 lb. | 68" | 62" | 36' | 5,335 | |||
| 20YSD8030 | $24,624.00 | 20,000 lb. | 80" | 74" | 30' | 5,200 | |||
| 20YSD8036L | $26,204.00 | 20,000 lb. | 80" | 74" | 36' | 6,065 |
25,000 lbs. Capacity Models
| Model | Price | Technical Drawing | Picture | Capacity (lbs.) | Overall Width | Usable Width | Length | Weight (lbs.) | Video |
|---|---|---|---|---|---|---|---|---|---|
| 25YSD6830 | $24,442.00 | 25,000 lb. | 68" | 62" | 30' | 4,785 | |||
| 25YSD6836L | $25,045.00 | 25,000 lb. | 68" | 62" | 36' | 5,770 | |||
| 25YSD8030 | $25,328.00 | 25,000 lb. | 80" | 74" | 30' | 5,615 | |||
| 25YSD8036L | $26,953.00 | 25,000 lb. | 80" | 74" | 36' | 6,565 |
30,000 lbs. Capacity Models
| Model | Price | Technical Drawing | Picture | Capacity (lbs.) | Overall Width | Usable Width | Length | Weight (lbs.) | Video |
|---|---|---|---|---|---|---|---|---|---|
| 30YSD6830 | $25,347.00 | 30,000 lb. | 68" | 62" | 30' | 5,100 | |||
| 30YSD6836L | $25,973.00 | 30,000 lb. | 68" | 62" | 36' | 6,100 | |||
| 30YSD8030 | $26,266.00 | 30,000 lb. | 80" | 74" | 30' | 6,050 | |||
| 30YSD8036L | $27,951.00 | 30,000 lb. | 80" | 74" | 36' | 6,900 |
*Monthly Rentals are also responsible for freight delivery charges and return freight charges.
Product Options
| Option | Price | Description | Picture |
|---|---|---|---|
| YSD-OPT 01 | $780.00 | TOW BAR |  |

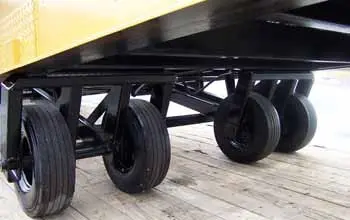

| YSD-OPT 03 | $1,447.00 | Tandem Wheel - 4 Wheels Total | |
| YSD-OPT 04 | $1,169.00 | No Undercarriage Deduct |
